| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 120M, 12M, 2470C, 320D GC, 320D L, 323D L, 553C, 559, 613G, 924H, 924HZ, 928H, 928HZ, 938H, 953D, AP-600D, AP-655D, BG600D, BG655D, C6.6, CP-56, CP-64, CP-76, CS-56, CS-56B, CS-64, CS-68B, CS-74, CS-7 |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 120M, 12M, 2470C, 320D GC, 320D L, 323D L, 553C, 559, 613G, 924H, 924HZ, 928H, 928HZ, 938H, 953D, AP-600D, AP-655D, BG600D, BG655D, C6.6, CP-56, CP-64, CP-76, CS-56, CS-56B, CS-64, CS-68B, CS-74, CS-7 | Product Name: | 2767475 PISTON AS Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA2767475 276-7475 2767475 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
2767475 PISTON AS Caterpillar parts 120M, 12M, 2470C, 320D GC, 320D L, 323D L, 553C, 559, 613G, 924H, 924HZ, 928H, 928HZ, 938H, 953D, AP-600D, AP-655D, BG600D, BG655D, C6.6, CP-56, CP-64, CP-76, CS-56, CS-56B, CS-64, CS-68B, CS-74, CS-7
Product Description
ASPHALT PAVER AP-600D AP-655D BG600D BG655D
EXCAVATOR 320D GC 320D L 323D L
INDUSTRIAL ENGINE C6.6
INTEGRATED TOOLCARRIER IT38H
KNUCKLEBOOM LOADER 559
LOAD HAUL DUMP R1300G II
MOTOR GRADER 120M 12M
PIPELAYER PL61
TRACK LOADER 953D
TRACK-TYPE TRACTOR D5R LGP D6K D6K LGP D6K XL D6N
VIBRATORY COMPACTOR CP-56 CP-64 CP-76 CS-56 CS-56B CS-64 CS-68B CS-74 CS-74B CS-78B
WHEEL FELLER BUNCHER 2470C 553C
WHEEL LOADER 924H 924HZ 928H 928HZ 938H
WHEEL TRACTOR-SCRAPER 613G
WHEELED EXCAVATOR M316D M318D M318D MH M322D M322D MH Caterpillar
279-8780 PISTON & ROD GP
S/N 6661-12994
PART OF 435-1678, 435-1679 ENGINE AR-PRIMARY
Information

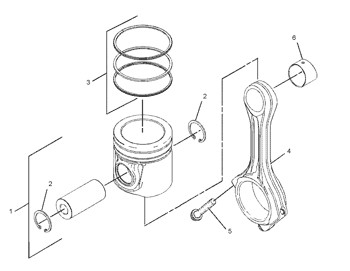

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 276-7475 | [6] | PISTON AS | |
| (EACH INCLUDES) | ||||
| 2. | 124-3536 | [2] | RING-RETAINING | |
| 380-2062 AB | [1] | KIT-PISTON (0.5-MM OS) | ||
| 3. | 276-7476 | [6] | KIT-PISTON RING | |
| 380-2065 AB | [1] | KIT-PISTON RING (0.5-MM OS) | ||
| 4. | 276-7479 BJ | [6] | ROD AS (F) | |
| -OR- | ||||
| 276-7481 BJ | [6] | ROD AS (L) | ||
| -OR- | ||||
| 276-7483 BJ | [6] | ROD AS (J) | ||
| (EACH ROD AS INCLUDES) | ||||
| 5. | 225-5439 | [2] | BOLT-SPECIAL | |
| 6. | 276-7478 | [1] | BUSHING | |
| Engine | 197-9368 | Ring | 3208H3Sp Body Piston W/Pin |
| Engine | 197-9374 | Ring | 3F8513 Retainer Piston Pin |
| Engine | 199-752 | Ring | 4J7376 Ring Wearing Piston |
| Engine | 217-1456 | Ring | 4P8132 Piston Body W/O Pin |
| Engine | 217-1573 | Ring | 5E3014 Retainer Piston Pin |
| Engine | 221-2305 | Ring | 5M1990 Pilot Clutch Piston |
| Engine | 226-8204 | Ring | 6E465 Seal Assy Hyd Piston |
| Engine | 2W-1711 | Ring | 7C0563 Rod Assem. (Piston) |
| Engine | 2W-4841 | Ring | 7R6541 Retainer Piston Pin |
| Engine | 314-5006 | Ring | 8N2275T Bushing Piston Pin |
| Engine | 3W-8158 | Ring | 8N8064 Retainer Piston Pin |
