| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | D8N, D8R, D8R II, D8T |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | D8N, D8R, D8R II, D8T | Product Name: | 6E1109 PISTON AS Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA6E1109 6E-1109 6E1109 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
6E1109 PISTON AS Caterpillar parts D8N, D8R, D8R II, D8T
Product Description
CA6E1109
6E-1109
6E1109
TRACK-TYPE TRACTOR D8N D8R D8R II D8T Caterpillar
D8N TRACTOR / POWER SHIFT / 5TJ00001-UP (MACHINE) POWERED BY 3406 ENGINE
6E1102 CYLINDER GP-DOZER LIFT (CHGS 02-07)
TYPE 1
114.3 MM (4.5 IN) BORE X 1425 MM (56.1 IN) STROKE
BULLDOZER S/N 6AH1-99999,6LH1-99999,6NH1-99999,9AH1-UP,9BH1-UP,9CH1-UP,5TJ1-UP
PART OF 1013455, 1013456 CYLINDER & LINES
AN ATTACHMENT
Information

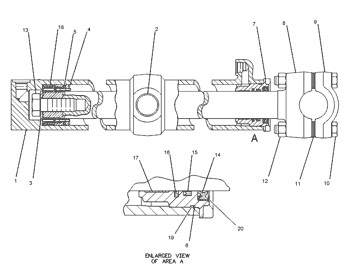

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6E-1103 | [1] | CYLINDER AS | |
| 2. | 6E-1108 | [2] | BEARING-SLEEVE | |
| 3. | 106-1017 | [1] | WASHER | |
| 4. | 6E-1109 | [1] | PISTON AS | |
| 5. | 9X-7269 | [1] | SEAL AS | |
| 6. | 1K-7095 | [1] | RING-BACKUP | |
| 7. | 6E-1113 | [1] | HEAD | |
| 8. | 6E-1111 | [1] | ROD AS | |
| 9. | 3G-0910 | [1] | CAP-BEARING | |
| 10. | 8T-0671 M | [4] | BOLT | |
| 11. | 3G-0911 B | [28] | SHIM | |
| 12. | 7X-0851 M | [4] | NUT | |
| 13. | 8T-1605 M | [1] | BOLT | |
| 14. | 8C-5218 | [1] | SEAL-LIP TYPE | |
| 15. | 5J-8300 | [1] | SEAL-U-CUP | |
| 16. | 8C-9126 | [1] | SEAL AS | |
| 17. | 9T-0094 | [1] | RING-WEAR | |
| 18. | 4J-3745 | [1] | RING-WEAR | |
| 19. | 3E-6703 | [1] | SEAL-O-RING | |
| 20. | 7M-2275 | [1] | RING-RETAINING |
| 2W4841 Piston Gp | Engine | 2W-4841 | Ring | 7R6541 Retainer Piston Pin |
| 3145006 Piston A | Engine | 314-5006 | Ring | 8N2275T Bushing Piston Pin |
| 3W8158 Piston As | Engine | 3W-8158 | Ring | 8N8064 Retainer Piston Pin |
| 3W8160 Piston As | Engine | 3W-8160 | Ring | Rs9Y7212 4 Ring Set Piston |
| 4I6448 Piston As | Engine | 4I-6448 | Ring | Tak9372 Piston Kit (See T) |
| 4I8834 Piston As | Engine | 4I-8834 | Ring | 10R7727 Piston 3066T/0.25Mm |
| 4P3953 Piston As | Engine | 4P-3953 | Ring | 1290359 Piston Body W/O Pin |
| 4T3272 Piston As | Engine | 4T-3272 | Ring | 1T1426 Piston Lockup Clutch |
