| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 572G, 983, 983B, D7F, D7G, D7G2 |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 572G, 983, 983B, D7F, D7G, D7G2 | Product Name: | 5M1990 PILOT Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA5M1990 5M-1990 5M1990 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
5M1990 PILOT Caterpillar parts 572G, 983, 983B, D7F, D7G, D7G2
Product Description
PIPELAYER 572G
TRACK LOADER 983 983B
TRACK-TYPE TRACTOR D7F D7G D7G2 Caterpillar

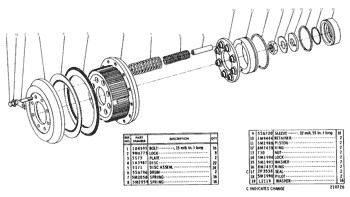

D7G TRACTOR / POWERSHIFT / 92V00001-02126 (MACHINE)
STEERING CLUTCH (5M2074 N/S)--Part 1 of 2
Information
| os. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 1D-4595 | [16] | BOLT .15 m(6 in.) long | |
| 2. | 9M-6775 | [8] | LOCK | |
| 3. | 5S-0073 | [2] | PLATE | |
| 4. | 1A-3987 | [22] | DISC | |
| 5. | 5S-0071 | [24] | DISC ASSEM. | |
| 6. | 5S-6796 | [2] | DRUM | |
| 7. | 5M-2058 | [16] | SPRING | |
| 8. | 5M-2059 | [16] | SPRING | |
| 9. | 5S-6720 | [16] | SLEEVE .12 m(4.55 in.) long | |
| 10. | 1M-9444 | [2] | RETAINER | |
| 11. | 5M-1988 | [2] | PISTON | |
| 12. | 8M-7438 | [2] | RING | |
| 13. | 0T-0030 | [2] | NUT | |
| 14. | 5M-1994 | [2] | LOCK | |
| 15. | 5M-1991 | [2] | WASHER | |
| 16. | 8M-7437 | [2] | RING | |
| 17. | 2P-3538 C | [2] | SEAL | |
| 18. | 5M-1990 | [2] | PILOT | |
| 19. | 0L-2119 | [16] | WASHER |
| 1990752 Piston B | Engine | 199-752 | Ring | 4J7376 Ring Wearing Piston |
| 2171456 Ring Kit | Engine | 217-1456 | Ring | 4P8132 Piston Body W/O Pin |
| 2171573 Ring Kit | Engine | 217-1573 | Ring | 5E3014 Retainer Piston Pin |
| 2212305 Crown As | Engine | 221-2305 | Ring | 5M1990 Pilot Clutch Piston |
| 2268204 Ring Set | Engine | 226-8204 | Ring | 6E465 Seal Assy Hyd Piston |
| 2W1711 Piston Gr | Engine | 2W-1711 | Ring | 7C0563 Rod Assem. (Piston) |
