| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 311B, 312B, 315B, 315B FM L, 318B |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 311B, 312B, 315B, 315B FM L, 318B | Product Name: | 1858979 PISTON AS Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA1858979 185-8979 1858979 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
1858979 PISTON AS Caterpillar parts 311B, 312B, 315B, 315B FM L, 318B
Product Description
CA1858979
185-8979
1858979
EXCAVATOR 311B 312B 315B 315B FM L 318B Caterpillar
318B L and 318B LN Excavators ADC00001-UP (MACHINE) POWERED BY 3046 Engine
171-5813 PUMP GP-PISTON
S/N ADC1-UP; AEJ1-UP
PART OF 173-1205 PUMP & MTG GP-MAIN HYDRAULIC
Information

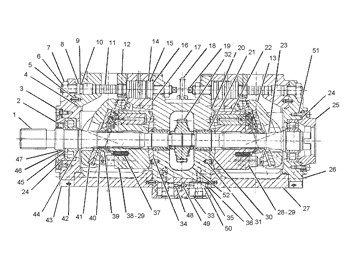

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 170-9962 | [1] | SHAFT | |
| 2. | 170-9969 | [1] | SEAL | |
| 3. | 6V-5683 M | [4] | BOLT (M6X1X16-MM) | |
| 4. | 095-1718 | [2] | SEAL-O-RING | |
| 5. | 095-0882 | [4] | PIN-SPRING | |
| 6. | 5I-8773 M | [2] | SETSCREW (M16X2X30-MM) | |
| 7. | 098-5747 M | [4] | NUT (M16X2-THD) | |
| 8. | 5I-8768 | [2] | STOP | |
| 9. | 095-1783 | [2] | RING-BACKUP | |
| 10. | 095-1584 | [2] | SEAL-O-RING | |
| 11. | 170-9968 | [2] | PISTON | |
| 12. | 170-9961 | [2] | PIN AS | |
| 13. | 5I-8781 | [2] | PLATE AS | |
| 14. | 095-1698 | [2] | SEAL-O-RING | |
| 15. | 5I-8770 | [2] | RING-BACKUP | |
| 16. | 5I-8767 | [2] | STOP | |
| 17. | 095-1575 | [18] | SEAL-O-RING | |
| 18. | 5I-8772 | [2] | EYEBOLT | |
| 19. | 5I-8774 M | [2] | SETSCREW (M16X2X39-MM) | |
| 20. | 095-1717 | [2] | SEAL-O-RING | |
| 21. | 170-9965 | [2] | BEARING | |
| 22. | 185-8979 | [2] | PISTON AS | |
| 23. | 170-9963 | [1] | SHAFT | |
| 24. | 095-1711 | [2] | SEAL-O-RING | |
| 25. | 5I-8762 | [1] | COVER | |
| 26. | 102-2562 M | [8] | BOLT-SOCKET HEAD (M16X2X180-MM) | |
| 27. | 5I-8763 | [2] | BODY-CASING | |
| 28. | 096-3150 | [3] | PLUG | |
| 29. | 095-1585 | [4] | SEAL-O-RING | |
| 30. | 170-9960 | [1] | BARREL AS | |
| 31. | 096-0014 | [2] | PIN-SPRING | |
| 32. | 133-6731 | [1] | GEAR | |
| 33. | 133-6730 | [1] | BLOCK | |
| 34. | 170-9959 | [1] | BARREL AS | |
| 35. | 095-1574 | [1] | SEAL-O-RING | |
| 36. | 095-1777 | [1] | RING-BACKUP | |
| 37. | 5I-8757 | [18] | SPRING | |
| 38. | 5I-8775 | [1] | ADAPTER | |
| 39. | 129-7976 | [2] | RETAINER-BALL | |
| 40. | 170-9966 | [2] | PLATE | |
| 41. | 5I-8759 | [2] | PLATE | |
| 42. | 8T-6759 | [15] | PLUG-PIPE | |
| 43. | 5I-8760 | [2] | SUPPORT | |
| 44. | 6V-5200 | [2] | RING-RETAINING | |
| 45. | 170-9964 | [2] | BEARING | |
| 46. | 5I-8754 | [4] | SPACER-BEARING (35X45X3-MM THK) | |
| 47. | 170-9967 | [1] | COVER | |
| 48. | 5I-8771 | [1] | SEAT | |
| 49. | 5H-1472 | [1] | BALL | |
| 50. | 5I-8765 | [1] | STOP | |
| 51. | 8T-0269 M | [4] | BOLT-SOCKET HEAD (M6X1X20-MM) | |
| 52. | 095-1713 | [1] | SEAL-O-RING |
| Engine | 221-2305 | Ring | 5M1990 Pilot Clutch Piston | Cylinder Liner |
| Engine | 226-8204 | Ring | 6E465 Seal Assy Hyd Piston | Cylinder Liner |
| Engine | 2W-1711 | Ring | 7C0563 Rod Assem. (Piston) | Cylinder Liner |
| Engine | 2W-4841 | Ring | 7R6541 Retainer Piston Pin | Cylinder Liner |
| Engine | 314-5006 | Ring | 8N2275T Bushing Piston Pin | Cylinder Liner |
| Engine | 3W-8158 | Ring | 8N8064 Retainer Piston Pin | Cylinder Liner |
| Engine | 3W-8160 | Ring | Rs9Y7212 4 Ring Set Piston | Cylinder Liner |
| Engine | 4I-6448 | Ring | Tak9372 Piston Kit (See T) | Cylinder Liner |
| Engine | 4I-8834 | Ring | 10R7727 Piston 3066T/0.25Mm | Cylinder Liner |
| Engine | 4P-3953 | Ring | 1290359 Piston Body W/O Pin | Cylinder Liner |
| Engine | 4T-3272 | Ring | 1T1426 Piston Lockup Clutch | Cylinder Liner |
| Engine | 4W-5819 | Ring | 1W8900 Ring Top Piston 3400 | Cylinder Liner |
| Engine | 5I-8632 | Ring | 1W9460 Ring Top Piston 3400 | Cylinder Liner |
