| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 3406E |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 3406E | Product Name: | 1352837 CROWN AS-PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA1352837 135-2837 1352837 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
1352837 CROWN AS-PISTON Caterpillar parts 3406E
Product Description
CA1352837
135-2837
1352837
348-7346 PARTS GP-ENGINE OVERHAUL
PART OF 356-6808, 356-6810, 356-6811 PARTS GP-ENGINE OVERHAUL
FOR USE WITH IN FRAME OVERHAUL FOR THE 3406E ON HIGHWAY TRUCKS WITH LESS THAN 455 HP, (110-9643, 5EK1-UP), (134-1700, 6TS1-20554)
FIELD INSTALLATION
Information

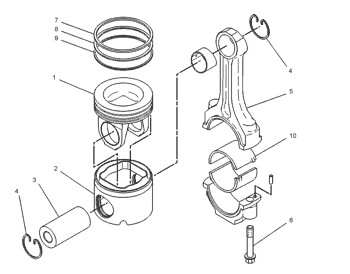

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 348-7073 Y | [1] | KIT-ENGINE OVERHAUL (BRONZE) | ||
| 111-8606 | [6] | BOLT-SPECIAL (OIL JET) | ||
| 135-2837 | [6] | CROWN AS-PISTON | ||
| (EACH INCLUDES) | ||||
| 0R-8333 | [1] | CYLINDER PACK GP | ||
| 197-9322 N | [1] | LINER-CYLINDER BLOCK | ||
| 7E-1177 N | [2] | RETAINER-PIN | ||
| 7N-7078 N | [1] | RING-PISTON (OIL CONTROL) | ||
| 134-3761 N | [1] | RING-PISTON (TOP) | ||
| 144-5902 N | [1] | RING-PISTON (INTERMEDIATE) | ||
| 160-9874 | [1] | KIT-GASKET (SINGLE CYLINDER LINER) | ||
| 9L-5854 | [1] | BAND-FILLER (130.2-MM ID) | ||
| 110-2220 | [1] | SEAL-LINER | ||
| 142-6217 | [1] | SEAL-O-RING | ||
| 142-7072 | [1] | SEAL-LINER | ||
| 0R-3780 | [1] | ROD AS-CONNECTING | ||
| 6I-2726 | [1] | BUSHING | ||
| 7E-4195 M | [2] | BOLT-CONNECTING ROD (M16X1.5X97-MM) | ||
| 7N-2043 | [2] | DOWEL | ||
| 166-3650 | [6] | JET AS-PISTON COOLING | ||
| 160-9874 | [6] | KIT-GASKET (SINGLE CYLINDER LINER) | ||
| (EACH INCLUDES) | ||||
| 9L-5854 | [1] | BAND-FILLER (130.2-MM ID) | ||
| 110-2220 | [1] | SEAL-LINER | ||
| 142-6217 | [1] | SEAL-O-RING | ||
| 142-7072 | [1] | SEAL-LINER | ||
| 197-9322 | [6] | LINER-CYLINDER BLOCK | ||
| 524-5613 | [6] | PIN-PISTON | ||
| 9Y-1792 | [1] | RETAINER | ||
| 7E-1177 | [12] | RETAINER-PIN | ||
| 7N-7078 | [6] | RING-PISTON (OIL CONTROL) | ||
| 134-3761 | [6] | RING-PISTON (TOP) | ||
| 144-5902 | [6] | RING-PISTON (INTERMEDIATE) | ||
| 130-0241 | [6] | SKIRT-PISTON | ||
| 1168154 Piston A | Engine | 116-8154 | Ring | Rs2382698 Ring Set Piston | Cylinder Liner |
| 1303987 Ring Top | Engine | 130-3987 | Ring | Rs2382720 Ring Set Piston | Cylinder Liner |
| 1352837 Crown As | Engine | 135-2837 | Ring | Rs2629288 Ring Set Piston | Cylinder Liner |
| 1440502 Ring Kit | Engine | 144-502 | Ring | Rs3145005 Ring Set Piston | Cylinder Liner |
| 1453031 Piston A | Engine | 145-3031 | Ring | Rs3569946 Ring Set Piston | Cylinder Liner |
| 1461780 Ring Kit | Engine | 146-1780 | Ring | Tak3102T Piston Liner Kit | Cylinder Liner |
| 1475860 Piston A | Engine | 147-5860 | Ring | Tak5250 Piston Kit(See T) | Cylinder Liner |
| 1495566 Crown As | Engine | 149-5566 | Ring | 1003415 Control Piston Kit | Cylinder Liner |
| 1521390 Piston A | Engine | 152-1390 | Ring | 1618919 Motor Group Piston | Cylinder Liner |
