| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 1145, 1150, 1160, 225, 3145, 3208, 613B, D3 |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 1145, 1150, 1160, 225, 3145, 3208, 613B, D3 | Product Name: | 9L8382 BEARING Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA9L8382 9L-8382 9L8382 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
9L8382 BEARING Caterpillar parts 1145, 1150, 1160, 225, 3145, 3208, 613B, D3
Product Description

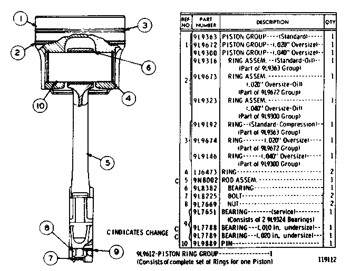

9L8570 CONNECTING ROD AND PISTON GROUP--8 Required
Part of all Engine Arrangements listed on Pages 4 through 7
Also part of 9L9910 Short Block Group listed on Page 49
Only separate parts serviced
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 9L-9363 | [1] | PISTON GROUP (Standard) | |
| 9L-9672 | [1] | PISTON GROUP (.020" Oversize) | ||
| 9L-9300 | [1] | PISTON GROUP (.040" Oversize) | ||
| 2. | 9L-9316 | [1] | RING ASSEM. (Standard Oil) | |
| (Part of 9L9363 Group) | ||||
| 9L-9673 | [1] | RING ASSEM. | ||
| (.020" Oversize-Oil) | ||||
| (Part of 9L9672 Group) | ||||
| 9L-9323 | [1] | RING ASSEM. | ||
| (.040" Oversize-Oil) | ||||
| (Part of 9L9300 Group) | ||||
| 3. | 9L-9192 | [1] | RING (Standard-Compression) | |
| (Part of 9L9363 Group) | ||||
| 9L-9674 | [1] | RING (.020" Oversize) | ||
| (Part of 9L9672 Group) | ||||
| 9L-9146 | [1] | RING (.040" Oversize) | ||
| (Part of 9L9300 Group) | ||||
| 4. | 1J-6473 | [2] | RING | |
| 5. | 9N-8002 RC | [1] | ROD ASSEM. | |
| 6. | 9L-8382 | [1] | BEARING | |
| 7. | 9L-8225 | [2] | BOLT | |
| 8. | 9L-7669 | [2] | NUT | |
| 9. | 9L-7651 | [1] | BEARING (service) | |
| (Consists of 2 9L9324 Bearings) | ||||
| 9L-7788 C | [1] | BEARING (.010 in. undersize) | ||
| 9L-7789 C | [1] | BEARING (.020 in. undersize) | ||
| 10. | 9L-9889 | [1] | PIN | |
| 9L-9612 | [1] | PISTON RING GROUP | ||
| 3208T3S Piston | Engine | 320-8T3S | Ring | 2H1062 Bushing Piston Pin | Cylinder Liner | 2H-1062 |
| 3255978 Piston | Engine | 325-5978 | Ring | 4F5605 Piston Pin Bushing | Cylinder Liner | 4F-5605 |
| 3364179 Piston | Engine | 336-4179 | Ring | 4J3342 Spacer Ring Piston | Cylinder Liner | 4J-3342 |
| 0R1694 Cyl Kit | Engine | 0R-1694 | Ring | 4T6895 Pump Gp Piston 416 | Cylinder Liner | 4T-6895 |
| 0R4635 Cylinder | Engine | 0R-4635 | Ring | 6F3443 Bushing Piston Pin | Cylinder Liner | 6F-3443 |
| 1077553 Crown A | Engine | 107-7553 | Ring | 6I497 Ring Piston Oil 4Mm | Cylinder Liner | 6I-497 |
| 1082716 Body As | Engine | 108-2716 | Ring | 7C111 Retainer Piston Pin | Cylinder Liner | 7C-111 |
