| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 342H,D8H |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 342H,D8H | Product Name: | 6F3443 BUSHING Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA6F3443 6F-3443 6F3443 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
6F3443 BUSHING Caterpillar parts D342, D8H
Product Description
CA6F3443
6F-3443
6F3443
INDUSTRIAL ENGINE D342
TRACK-TYPE TRACTOR D8H Caterpillar
D342 ENGINE 31B00001-02477

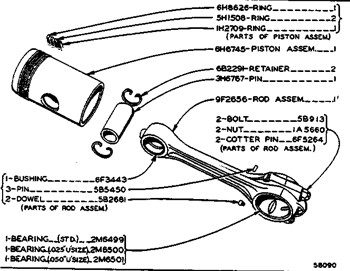

CONNECTING ROD AND PISTON--6 Required
Serial No. 31B1 to 31B2359 and 31B2406-Up
Note: 1M7215 Piston and Liner Group, consisting of 1--Piston Assembly,
1--Liner and 3--Seal, is available
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 6F-3443 | [1] | BUSHING | ||
| 5B-5450 | [3] | PIN | ||
| 5B-2681 | [2] | DOWEL | ||
| (PARTS OF ROD ASSEM.) | ||||
| 2M-6499 | [1] | BEARING (STD.) | ||
| 2M-6500 | [1] | BEARING (.025" U''SIZE) | ||
| 2M-6501 | [1] | BEARING (.050" U''SIZE) | ||
| 6H-8626 | [1] | RING | ||
| 5H-1508 | [2] | RING | ||
| 1H-2709 | [1] | RING | ||
| (PARTS OF PISTON ASSEM.) | ||||
| 6H-6745 | [1] | PISTON ASSEM. | ||
| 6B-2291 | [2] | RETAINER | ||
| 3H-6767 | [1] | PIN | ||
| 9F-2656 | [1] | ROD ASSEM. | ||
| 5B-0913 | [2] | BOLT | ||
| 1A-5660 | [2] | NUT | ||
| 6F-5264 | [2] | COTTER PIN | ||
| 1077553 Crown A | Engine | 107-7553 | Ring | 6I497 Ring Piston Oil 4Mm | Cylinder Liner | 6I-497 |
| 1082716 Body As | Engine | 108-2716 | Ring | 7C111 Retainer Piston Pin | Cylinder Liner | 7C-111 |
| 1175063 Body As | Engine | 117-5063 | Ring | 7M4925 Bushing Piston Pin | Cylinder Liner | 7M-4925 |
| 1195013 Pump Gp | Engine | 119-5013 | Ring | 7N3633P Body Piston W/Pin | Cylinder Liner | 7N-3633 |
| 1260980 Pump Gp | Engine | 126-980 | Ring | 7N4515P Body Piston W/Pin | Cylinder Liner | 7N-4515 |
| 1340039 Housing | Engine | 134-0039 | Ring | 7S9347 Bushing Piston Pin | Cylinder Liner | 7S-9347 |
| 1670994 Pump Gp | Engine | 167-0994 | Ring | 7S9348 Bushing Piston Pin | Cylinder Liner | 7S-9348 |
| 1712092 Pump Gp | Engine | 171-2092 | Ring | 9L8382 Bushing Piston Pin | Cylinder Liner | 9L-8382 |
| 1S9543 Retainer | Engine | 1S-9543 | Ring | 9N2874 Piston Body(See T) | Cylinder Liner | 9N-2874 |
| 1W2804 Piston A | Engine | 1W-2804 | Ring | 9N2874P Body Piston W/Pin | Cylinder Liner | 9N-2874 |
| 2127596 Body As | Engine | 212-7596 | Ring | 9N5250P Body Piston W/Pin | Cylinder Liner | 9N-5250 |
| 2250115 Crown A | Engine | 225-0115 | Ring | 9N5403P Body Piston W/Pin | Cylinder Liner | 9N-5403 |
| 2382701 Crown A | Engine | 238-2701 | Ring | 9N581 Ring Piston .020 Os | Cylinder Liner | 9N-581 |
