| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 416,428 |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 416,428 | Product Name: | 4T6895 PUMP GP-PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA4T6895 4T-6895 4T6895 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
4T6895 PUMP GP-PISTON Caterpillar parts 416, 428
Product Description

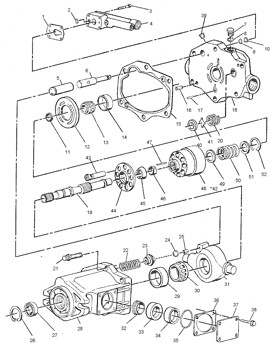

4T6895 PUMP GP-PISTON SLIPPER
S/N 6TC1-1087, 1092-1122
1U0432-PAGE 172
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 9T-2002 | [1] | GASKET | |
| 2. | 5F-9144 | [1] | SEAL-O-RING | |
| 3. | 7L-0688 | [4] | BOLT-SOCKET HEAD | |
| 4. | 1U-0432 Y | [1] | VALVE GP | |
| 5. | 9T-2172 | [1] | PISTON | |
| 6. | 9T-2170 | [1] | ROD-PISTON | |
| 7. | 9S-4190 | [1] | PLUG-0-RING | |
| 8. | 2M-9780 | [1] | SEAL-O-RING | |
| 9. | 8F-9206 | [1] | SEAL-O-RING | |
| 10. | 9T-2003 | [1] | RING | |
| 11. | 9T-2000 B | [1] | KIT-SPACER | |
| 12. | 9T-2232 | [1] | PLATE-WAFER | |
| 13. | 7T-9752 | [1] | CONE-ROLLER BEARING | |
| 14. | 7T-9753 | [1] | CUP-ROLLER BEARING | |
| 15. | 9T-1752 | [1] | GASKET | |
| 16. | 8T-5089 | [2] | PIN-SPRING | |
| 17. | 9T-2001 | [1] | PIN | |
| 18. | 9T-2176 | [1] | HEAD-VALVE BLOCK | |
| 19. | 9T-2016 | [1] | SHAFT | |
| 20. | 9T-3867 | [1] | SPRING | |
| 21. | 5P-0076 | [6] | BOLT-12 POINT HEAD | |
| 22. | 9T-2168 | [1] | SPRING | |
| 23. | 9T-2171 | [1] | SEAT | |
| 24. | 9T-2173 | [1] | SEAT | |
| 25. | 8J-8308 | [1] | PIN-ROLL | |
| 26. | 002-3455 | [1] | RING-RETAINING | |
| 27. | 8T-5040 | [1] | SEAL-LIP TYPE | |
| 28. | 9T-2015 | [1] | HOUSING | |
| 29. | 7T-9755 | [1] | CUP-ROLLER BEARING | |
| 30. | 7T-9754 | [1] | CONE-ROLLER BEARING | |
| 31. | 9T-2231 | [1] | SWASHPLATE | |
| 32. | 7T-9831 | [2] | CONE-ROLLER BEARING | |
| 33. | 3P-8680 | [2] | CUP-ROLLER BEARING | |
| 34. | 9T-2017 | [2] | SPACER | |
| 35. | 005-8593 | [2] | SEAL-O-RING | |
| 36. | 9T-2011 B | [1] | KIT-SHIM | |
| 37. | 9T-2014 | [2] | COVER | |
| 38. | 9S-2011 | [8] | SCREW-MACHINE | |
| 39. | 9F-2247 | [1] | PLUG | |
| 40. | 9T-1636 | [1] | SEAT | |
| 41. | 9T-1710 | [1] | POPPET | |
| 42. | 9T-2031 | [1] | ROTATING GP | |
| 43. | 9T-3868 | [1] | KIT-PISTON | |
| 44. | 9T-3860 | [1] | PLATE | |
| 45. | 9T-3859 | [1] | WASHER-SPHERICAL | |
| 46. | 9T-3862 | [1] | RETAINER | |
| 47. | 9T-3857 | [3] | PIN | |
| 48. | 9T-3863 | [1] | BARREL | |
| 49. | 9T-3861 | [1] | WASHER | |
| 50. | 9T-3858 | [1] | SPRING | |
| 51. | 9T-3864 | [1] | WASHER | |
| 52. | 004-1683 | [1] | RING-SNAP |
