| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 3114,3116 |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 3114,3116 | Product Name: | 1077553 CROWN AS-PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA1077553 107-7553 1077553 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
1077553 CROWN AS-PISTON Caterpillar parts 3114, 3116
Product Description

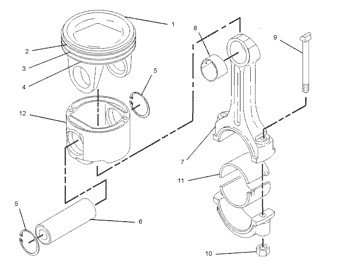

107-7560 PISTON & ROD GP
S/N 5YL1-59
17.6:RATIO
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 107-7553 | [1] | CROWN AS-PISTON | |
| 2. | 107-7548 | [1] | RING-PISTON (TOP) | |
| 3. | 4P-1807 | [1] | RING-PISTON (INTERMEDIATE) | |
| 4. | 4P-1806 | [1] | RING-PISTON (OIL CONTROL) | |
| 5. | 7C-0111 | [2] | RETAINER-PIN | |
| 6. | 7C-3901 | [1] | PIN-PISTON | |
| 7. | 2W-9128 | [1] | ROD AS-CONNECTING | |
| 8. | 2W-0027 | [1] | BEARING (EYE END) | |
| 9. | 9N-3832 | [2] | BOLT-CONNECTING ROD | |
| 10. | 9L-7669 | [2] | NUT-CONNECTING ROD (7/16-20-THD) | |
| 11. | 7W-9415 | [1] | BEARING-CONNECTING ROD (STANDARD) | |
| 7C-6976 A | [1] | BEARING-CONNECTING ROD (0.25-MM US) | ||
| 7C-6977 A | [1] | BEARING-CONNECTING ROD (0.5-MM US) | ||
| 12. | 7E-9512 | [1] | SKIRT-PISTON |
| 0R1694 Cyl Kit | Engine | 0R-1694 | Ring | 4T6895 Pump Gp Piston 416 | Cylinder Liner | 4T-6895 |
| 0R4635 Cylinder | Engine | 0R-4635 | Ring | 6F3443 Bushing Piston Pin | Cylinder Liner | 6F-3443 |
| 1077553 Crown A | Engine | 107-7553 | Ring | 6I497 Ring Piston Oil 4Mm | Cylinder Liner | 6I-497 |
| 1082716 Body As | Engine | 108-2716 | Ring | 7C111 Retainer Piston Pin | Cylinder Liner | 7C-111 |
| 1175063 Body As | Engine | 117-5063 | Ring | 7M4925 Bushing Piston Pin | Cylinder Liner | 7M-4925 |
| 1195013 Pump Gp | Engine | 119-5013 | Ring | 7N3633P Body Piston W/Pin | Cylinder Liner | 7N-3633 |
| 1260980 Pump Gp | Engine | 126-980 | Ring | 7N4515P Body Piston W/Pin | Cylinder Liner | 7N-4515 |
| 1340039 Housing | Engine | 134-0039 | Ring | 7S9347 Bushing Piston Pin | Cylinder Liner | 7S-9347 |
| 1670994 Pump Gp | Engine | 167-0994 | Ring | 7S9348 Bushing Piston Pin | Cylinder Liner | 7S-9348 |
