| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 416E, 422E, 428E, 432E, 434E |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 416E, 422E, 428E, 432E, 434E | Product Name: | 3364179 PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA3364179 336-4179 3364179 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
3364179 PISTON Caterpillar parts 416E, 422E, 428E, 432E, 434E
Product Description
CA3364179
336-4179
3364179

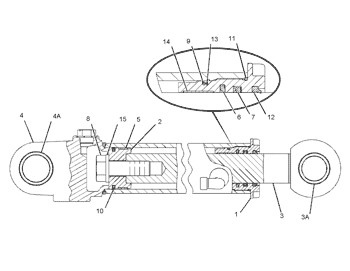

210-7086 CYLINDER GP-BACKHOE BUCKET
S/N SHA1-UP
85-MM (3.3-IN) BORE X 852-MM (33.5-IN) STROKE
PART OF 209-9929 BACKHOE AR-EXTENDABLE STICK, 209-9924 BACKHOE AR-STANDARD STICK
Type 1
AN ATTACHMENT
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 213-2483 | [1] | HEAD | |
| 2. | 336-4179 | [1] | PISTON | |
| 3. | 213-2486 | [1] | ROD AS | |
| 3A. | 9R-0162 | [2] | BUSHING | |
| 4. | 336-4182 | [1] | CYLINDER AS-HYDRAULIC | |
| 4A. | 9R-0139 | [2] | BUSHING | |
| 6V-8398 | [1] | SEAL-O-RING | ||
| 5. | 223-3502 J | [1] | RING-WEAR | |
| 6. | 167-2202 J | [1] | SEAL AS-BUFFER | |
| 7. | 364-0084 J | [1] | SEAL-U-CUP | |
| 8. | 173-9683 M | [1] | BOLT (M30X3.5X90-MM) | |
| 9. | 1H-7339 J | [1] | SEAL-O-RING | |
| 10. | 210-7026 J | [2] | SEAL AS | |
| 11. | 2H-6338 J | [1] | SEAL-O-RING | |
| 12. | 5J-8016 J | [1] | WIPER-ROD | |
| 13. | 8J-2574 J | [1] | RING-BACKUP | |
| 14. | 9X-7260 J | [1] | RING-WEAR | |
| 15. | 9X-8399 | [1] | WASHER (33X56X6-MM THK) |
| 0R4635 Cylinder | Engine | 0R-4635 | Ring | 6F3443 Bushing Piston Pin | Cylinder Liner | 6F-3443 |
| 1077553 Crown A | Engine | 107-7553 | Ring | 6I497 Ring Piston Oil 4Mm | Cylinder Liner | 6I-497 |
| 1082716 Body As | Engine | 108-2716 | Ring | 7C111 Retainer Piston Pin | Cylinder Liner | 7C-111 |
| 1175063 Body As | Engine | 117-5063 | Ring | 7M4925 Bushing Piston Pin | Cylinder Liner | 7M-4925 |
| 1195013 Pump Gp | Engine | 119-5013 | Ring | 7N3633P Body Piston W/Pin | Cylinder Liner | 7N-3633 |
| 1260980 Pump Gp | Engine | 126-980 | Ring | 7N4515P Body Piston W/Pin | Cylinder Liner | 7N-4515 |
| 1340039 Housing | Engine | 134-0039 | Ring | 7S9347 Bushing Piston Pin | Cylinder Liner | 7S-9347 |
| 1670994 Pump Gp | Engine | 167-0994 | Ring | 7S9348 Bushing Piston Pin | Cylinder Liner | 7S-9348 |
| 1712092 Pump Gp | Engine | 171-2092 | Ring | 9L8382 Bushing Piston Pin | Cylinder Liner | 9L-8382 |
| 1S9543 Retainer | Engine | 1S-9543 | Ring | 9N2874 Piston Body(See T) | Cylinder Liner | 9N-2874 |
| 1W2804 Piston A | Engine | 1W-2804 | Ring | 9N2874P Body Piston W/Pin | Cylinder Liner | 9N-2874 |
