1195013 PUMP GP-PISTON Caterpillar parts 14G, 16G PUMP
Product Description
CA1195013
119-5013
1195013
MOTOR GRADER 14G 16G Caterpillar
Caterpillar SIS

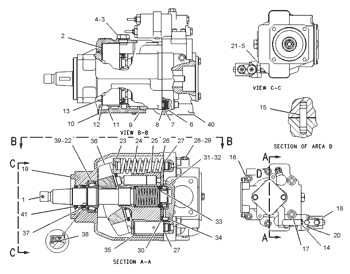

119-5013 PUMP GP-PISTON
S/N 96U7046-99999
SLIPPER
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 103-5690 | [1] | SHAFT-PUMP | |
| 2. | 6E-4237 | [1] | BEARING | |
| 3. | 6E-4224 | [1] | PLUG-SWASHPLATE | |
| 4. | 033-6036 | [1] | SEAL-O-RING | |
| 5. | 9S-4183 | [1] | PLUG (1-1/16-12-THD) | |
| 6. | 9T-1699 | [1] | SPRING | |
| 7. | 9T-1710 | [1] | POPPET | |
| 8. | 9T-1636 | [1] | SEAT | |
| 9. | 6E-4227 | [1] | COVER | |
| 10. | 6V-8837 M | [3] | BOLT (M6X1X16-MM) | |
| 11. | 4F-4097 | [1] | SEAL-O-RING | |
| 12. | 6E-4236 | [1] | BEARING | |
| 13. | 3E-4302 M | [2] | SCREW-FLAT HEAD (M4X0.7X10-MM) | |
| 14. | 8T-5039 | [3] | SEAL-O-RING | |
| 15. | 095-0888 | [2] | PIN-SPRING | |
| 16. | 095-0673 M | [4] | BOLT-SOCKET HEAD (M12X1.75X60-MM) | |
| 17. | 095-0705 M | [2] | BOLT-SOCKET HEAD (M16X2X100-MM) | |
| 18. | 6E-6044 Y | [1] | VALVE GP-PUMP CONTROL (PRESSURE, FLOW COMPENSATOR) | |
| 19. | 103-5689 | [1] | HOUSING-PUMP | |
| 20. | 6V-8337 M | [4] | BOLT-SOCKET HEAD (M8X1.25X35-MM) | |
| 21. | 3D-2824 | [1] | SEAL-O-RING | |
| 22. | 7K-8876 | [1] | CUP-BEARING | |
| 23. | 6E-4213 | [1] | KIT-BIAS PISTON | |
| 24. | 6E-4214 | [1] | SPRING-BIAS | |
| 25. | 6E-4216 Y | [1] | ROTATING GP-PUMP (STEERING) | |
| 26. | 6E-4225 | [1] | GASKET | |
| 27. | 7L-9061 | [2] | SEAL-O-RING | |
| 28. | 3E-7417 | [2] | PLUG | |
| 29. | 8T-7876 | [2] | SEAL-O-RING | |
| 30. | 6E-4234 | [1] | PLATE-VALVE | |
| 31. | 005-0471 | [1] | CONE-BEARING | |
| 32. | 005-0469 | [1] | CUP-BEARING | |
| 33. | 103-6282 B | [1] | SHIM PACK (INCLUDES 17-SHIMS) | |
| 34. | 9T-1652 | [1] | PIN | |
| 35. | 6E-4215 | [1] | KIT-PISTON | |
| (KIT INCLUDES PACKING, ROD, & PISTON) | ||||
| 36. | 6E-4221 Y | [1] | SWASHPLATE GP | |
| 37. | 6L-8797 | [1] | RING-RETAINING | |
| 38. | 9X-7547 | [1] | SEAL-LIP TYPE | |
| 39. | 7K-8877 | [1] | CONE-BEARING | |
| 40. | 103-5691 | [1] | HEAD-PUMP | |
| 41. | 108-4818 | [1] | SHIELD-SEAL | |
