| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 315C, D3G, D4G, D5G |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 315C, D3G, D4G, D5G | Product Name: | 2254284 PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA2254284 225-4284 2254284 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
2254284 PISTON Caterpillar parts 315C, D3G, D4G, D5G
Product Description
CA2254284
225-4284
2254284
EXCAVATOR 315C
TRACK-TYPE TRACTOR D3G D4G D5G Caterpillar
315C & 315C L Excavators AKE00001-UP (MACHINE) POWERED BY 3046 Engine
Information

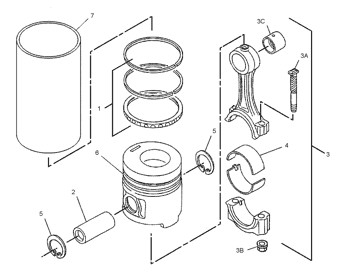

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 226-8204 | [6] | SET-PISTON RING | |
| 2. | 234-4815 | [6] | PIN-PISTON | |
| 3. | 103-9680 | [6] | ROD AS-CONNECTING | |
| (EACH INCLUDES) | ||||
| 3A. | 128-2955 | [2] | BOLT-CONNECTING ROD | |
| 3B. | 128-2956 | [2] | NUT | |
| 3C. | 128-2958 | [1] | BUSHING | |
| 4. | 103-9683 B | [12] | BEARING-CONNECTING ROD | |
| 103-9684 B | [12] | BEARING-CONNECTING ROD (0.25-MM US) | ||
| 103-9685 B | [12] | BEARING-CONNECTING ROD (0.5-MM US) | ||
| 103-9686 B | [12] | BEARING-CONNECTING ROD (0.75-MM US) | ||
| 5. | 104-1236 | [12] | RING-SNAP | |
| 6. | 225-4284 | [6] | PISTON | |
| 7. | 122-7311 | [6] | SLEEVE-PISTON | |
| 2254284 Piston | Engine | 225-4284 | Ring | Rs7E3888 Ring Set Piston | Cylinder Liner | 7E-3888 |
| 2264961 Piston | Engine | 226-4961 | Ring | Tak2874 Piston Liner Kit | Cylinder Liner | Tak-2874 |
| 2289572 Piston | Engine | 228-9572 | Ring | Tak3102 Piston Liner Kit | Cylinder Liner | Tak-3102 |
| 2332582 Piston | Engine | 233-2582 | Ring | Tak3633 Piston Liner Kit | Cylinder Liner | Tak-3633 |
| 2344814 Piston | Engine | 234-4814 | Ring | Tak4262 Piston Liner Kit | Cylinder Liner | Tak-4262 |
| 2382729 Body A | Engine | 238-2729 | Ring | Tak4515 Piston Liner Kit | Cylinder Liner | Tak-4515 |
| 2444509 Piston | Engine | 244-4509 | Ring | Tak9111 Piston Liner Kit | Cylinder Liner | Tak-9111 |
| 2977750 Piston | Engine | 297-7750 | Ring | Tak9889 Piston Liner Kit | Cylinder Liner | Tak-9889 |
| 2977751 Piston | Engine | 297-7751 | Ring | 0R4218 Pump Gp Piston 416 | Cylinder Liner | 0R-4218 |
