| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 824G, 824G II, 824H, 825G, 825G II, 825H, 826G, 826G II, 826H, 980G, 980G II, 980H |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 824G, 824G II, 824H, 825G, 825G II, 825H, 826G, 826G II, 826H, 980G, 980G II, 980H | Product Name: | 1053635 PUMP GP-PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA1053635 105-3635 1053635 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
1053635 PUMP GP-PISTON Caterpillar parts 824G, 824G II, 824H, 825G, 825G II, 825H, 826G, 826G II, 826H, 980G, 980G II, 980H
Product Description
CA1053635
105-3635
1053635
LANDFILL COMPACTOR 826G 826G II 826H
SOIL COMPACTOR 825G 825G II 825H
WHEEL DOZER 824G 824G II 824H
WHEEL LOADER 980G 980G II 980H Caterpillar
Caterpillar SIS

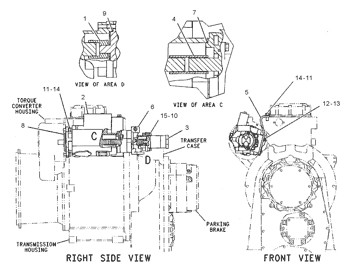

105-3635 PUMP GP-PISTON -STEERING
S/N 2KR1-UP
PART OF 110-8480 PUMP & MTG GP-STEERING & XMSN
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6E-4224 | [1] | PLUG-SWASHPLATE | |
| 2. | 033-6036 | [1] | SEAL-O-RING | |
| 3. | 100-3402 | [1] | BEARING-SWASH | |
| 4. | 100-3405 | [1] | BEARING-SWASH | |
| 5. | 6V-8837 M | [3] | BOLT (M6X1X16-MM) | |
| 6. | 4F-4097 | [1] | SEAL-O-RING | |
| 7. | 3E-4302 M | [2] | SCREW-FLAT HEAD (M4X0.7X10-MM) | |
| 8. | 100-3404 | [1] | COVER-TRUNNION | |
| 9. | 9T-1636 | [1] | SEAT | |
| 10. | 9T-1710 | [1] | POPPET | |
| 11. | 9T-1699 | [1] | SPRING | |
| 12. | 119-6224 | [1] | HEAD-PUMP | |
| 13. | 457-5223 B | [1] | KIT-SHIM (INCLUDES 17-SHIMS) | |
| 14. | 6Y-4280 | [1] | CONE-BEARING | |
| 15. | 7T-9755 | [1] | CUP-BEARING | |
| 16. | 9T-9460 | [1] | PLATE-VALVE | |
| 17. | 3E-7417 | [2] | PLUG | |
| 18. | 8T-7876 | [2] | SEAL-O-RING | |
| 19. | 7L-9061 | [2] | SEAL-O-RING | |
| 20. | 100-3413 | [1] | GASKET | |
| 21. | 100-3412 Y | [1] | ROTATING GP-PUMP (STEERING) | |
| 22. | 100-3409 | [1] | SPRING-BIAS | |
| 23. | 100-3408 | [1] | KIT-BIAS PISTON |
| 2254284 Piston | Engine | 225-4284 | Ring | Rs7E3888 Ring Set Piston | Cylinder Liner | 7E-3888 |
| 2264961 Piston | Engine | 226-4961 | Ring | Tak2874 Piston Liner Kit | Cylinder Liner | Tak-2874 |
| 2289572 Piston | Engine | 228-9572 | Ring | Tak3102 Piston Liner Kit | Cylinder Liner | Tak-3102 |
| 2332582 Piston | Engine | 233-2582 | Ring | Tak3633 Piston Liner Kit | Cylinder Liner | Tak-3633 |
| 2344814 Piston | Engine | 234-4814 | Ring | Tak4262 Piston Liner Kit | Cylinder Liner | Tak-4262 |
| 2382729 Body A | Engine | 238-2729 | Ring | Tak4515 Piston Liner Kit | Cylinder Liner | Tak-4515 |
| 2444509 Piston | Engine | 244-4509 | Ring | Tak9111 Piston Liner Kit | Cylinder Liner | Tak-9111 |
| 2977750 Piston | Engine | 297-7750 | Ring | Tak9889 Piston Liner Kit | Cylinder Liner | Tak-9889 |
| 2977751 Piston | Engine | 297-7751 | Ring | 0R4218 Pump Gp Piston 416 | Cylinder Liner | 0R-4218 |
| 2977752 Piston | Engine | 297-7752 | Ring | 1053635 Pump Group Piston | Cylinder Liner | 105-3635 |
| 2977753 Piston | Engine | 297-7753 | Ring | 1078136 Pump Group Piston | Cylinder Liner | 107-8136 |
