| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 824G, 824G II, 824H, 825G, 825G II, 825H, 826G, 826G II, 826H, 980G, 980G II, 980H |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 824G, 824G II, 824H, 825G, 825G II, 825H, 826G, 826G II, 826H, 980G, 980G II, 980H | Product Name: | 1053635 PUMP GP-PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA1053635 105-3635 1053635 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
1053635 PUMP GP-PISTON Caterpillar parts 824G, 824G II, 824H, 825G, 825G II, 825H, 826G, 826G II, 826H, 980G, 980G II, 980H
Product Description
CA1053635
105-3635
1053635
LANDFILL COMPACTOR 826G 826G II 826H
SOIL COMPACTOR 825G 825G II 825H
WHEEL DOZER 824G 824G II 824H
WHEEL LOADER 980G 980G II 980H Caterpillar
Caterpillar SIS

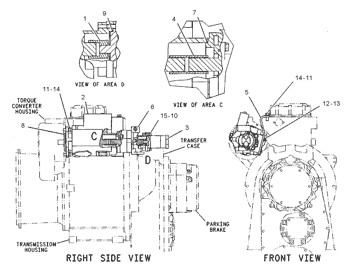

105-3635 PUMP GP-PISTON -STEERING
S/N 2KR1-UP
PART OF 110-8480 PUMP & MTG GP-STEERING & XMSN
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6E-4224 | [1] | PLUG-SWASHPLATE | |
| 2. | 033-6036 | [1] | SEAL-O-RING | |
| 3. | 100-3402 | [1] | BEARING-SWASH | |
| 4. | 100-3405 | [1] | BEARING-SWASH | |
| 5. | 6V-8837 M | [3] | BOLT (M6X1X16-MM) | |
| 6. | 4F-4097 | [1] | SEAL-O-RING | |
| 7. | 3E-4302 M | [2] | SCREW-FLAT HEAD (M4X0.7X10-MM) | |
| 8. | 100-3404 | [1] | COVER-TRUNNION | |
| 9. | 9T-1636 | [1] | SEAT | |
| 10. | 9T-1710 | [1] | POPPET | |
| 11. | 9T-1699 | [1] | SPRING | |
| 12. | 119-6224 | [1] | HEAD-PUMP | |
| 13. | 457-5223 B | [1] | KIT-SHIM (INCLUDES 17-SHIMS) | |
| 14. | 6Y-4280 | [1] | CONE-BEARING | |
| 15. | 7T-9755 | [1] | CUP-BEARING | |
| 16. | 9T-9460 | [1] | PLATE-VALVE | |
| 17. | 3E-7417 | [2] | PLUG | |
| 18. | 8T-7876 | [2] | SEAL-O-RING | |
| 19. | 7L-9061 | [2] | SEAL-O-RING | |
| 20. | 100-3413 | [1] | GASKET | |
| 21. | 100-3412 Y | [1] | ROTATING GP-PUMP (STEERING) | |
| 22. | 100-3409 | [1] | SPRING-BIAS | |
| 23. | 100-3408 | [1] | KIT-BIAS PISTON | |
| (INCLUDES SPRING, ROD, PISTON & SEAL) | ||||
| 24. | 002-1212 | [1] | CUP-BEARING | |
| 25. | 2F-8509 | [1] | CONE-BEARING | |
| 26. | 119-6237 | [1] | SHAFT-PUMP | |
| 27. | 122-0563 | [1] | HOUSING-PUMP | |
| 28. | 006-8663 | [2] | RING | |
| 29. | 8T-4750 | [2] | SEAL-LIP TYPE | |
| 30. | 169-3290 Y | [1] | SWASHPLATE GP | |
| 31. | 100-3415 | [1] | KIT-CONTROL PISTON | |
| 1590308 Piston | Engine | 159-0308 | Ring | 8J6730 Pump Group Piston | Cylinder Liner | 8J-6730 |
| 1606600 Piston | Engine | 160-6600 | Ring | 8N0822 Ring Group Piston | Cylinder Liner | 8N-0822 |
| 1607994 Body A | Engine | 160-7994 | Ring | 9R9408 Piston Rear Brake | Cylinder Liner | 9R-9408 |
| 1656969 Piston | Engine | 165-6969 | Ring | 9R9408 Piston Rear Brake | Cylinder Liner | 9R-9408 |
| 1684531 Body A | Engine | 168-4531 | Ring | 9T2306 Pump Group Piston | Cylinder Liner | 9T-2306 |
| 1684538 Tube A | Engine | 168-4538 | Ring | 9T2306 Pump Group Piston | Cylinder Liner | 9T-2306 |
| 1692969 Piston | Engine | 169-2969 | Ring | 9T3680 Pump Group Piston | Cylinder Liner | 9T-3680 |
| 1722353 Piston | Engine | 172-2353 | Ring | 9T3680 Pump Group Piston | Cylinder Liner | 9T-3680 |
| 1769273 Piston | Engine | 176-9273 | Ring | 9T6857 Pump Group Piston | Cylinder Liner | 9T-6857 |
| 1786546 Piston | Engine | 178-6546 | Ring | 9T6857 Pump Group Piston | Cylinder Liner | 9T-6857 |
