| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | C15, TH35-C15T BODY |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | C15, TH35-C15T BODY | Product Name: | 3067460 BODY AS-PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA3067460 306-7460 3067460 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
3067460 BODY AS-PISTON Caterpillar parts C15, TH35-C15T BODY
Product Description
CA3067460
306-7460
3067460
PETROLEUM PACKAGE TH35-C15T
TRUCK ENGINE C15 Caterpillar
C15 On-highway Engine BXS00001-UP
360-7718 PARTS GP-ENGINE OVERHAUL
CONTAINS BRONZE, SILVER, GOLD, PLATINUM OVERHAUL KITS, FOR HIGH LOAD APPLICATION OVER 140,000 POUNDS WILL REQUIRE TOP PISTON RING 237-0194 TO BE REPLACED WITH 247-6130, PER ENGINE NEWS ARTICLE SEBD6798-00
FOR USE WITH C15 ENGINE ARRANGEMENTS, MXS1-99999, 435-550HP, NXS1-UP, 435-550HP, BXS1-UP, 435-550HP
FIELD INSTALLATION
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 356-1428 Y | [1] | PARTS GP-ENGINE OVERHAUL (SILVER) | ||
| 357-4645 Y | [1] | PARTS GP-ENGINE OVERHAUL (BRONZE) | ||
| 10R-9923 | [1] | KIT-ENGINE OVERHAUL (GOLD) | ||
| 10R-3304 | [6] | CYLINDER PACK AS | ||

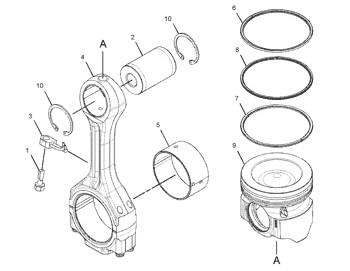

| (EACH INCLUDES) | ||||
| 238-4737 | [1] | RING-PISTON (INTERMEDIATE) | ||
| 250-2940 | [2] | RETAINER-PIN | ||
| 306-7460 | [1] | BODY AS-PISTON | ||
| 180-7350 | [1] | PIN-PISTON | ||
| 10R-2117 | [1] | ROD AS-CONNECTING | ||
| 7N-2043 | [2] | DOWEL | ||
| 213-3217 M | [4] | BOLT (M11X1.25X84-MM) | ||
| 229-6259 | [1] | BEARING | ||
| 160-9874 | [1] | KIT-GASKET (SINGLE CYLINDER LINER) | ||
| 9L-5854 | [1] | BAND-FILLER (130.2-MM ID) | ||
| 110-2220 | [1] | SEAL-LINER | ||
| 142-6217 | [1] | SEAL-O-RING | ||
| 142-7072 | [1] | SEAL-LINER | ||
| 197-9322 | [1] | LINER-CYLINDER BLOCK | ||
| 237-0194 | [1] | RING-PISTON-TOP | ||
| 238-0294 | [1] | RING-PISTON (OIL) | ||
| 357-4645 Y | [1] | PARTS GP-ENGINE OVERHAUL (BRONZE) | ||
| 10R-9925 | [1] | KIT-ENGINE OVERHAUL (PLATINUM) | ||
| 348-7743 | [12] | BRIDGE-VALVE | ||
| 357-4645 Y | [1] | PARTS GP-ENGINE OVERHAUL (BRONZE) | ||
| 0R-9449 Y | [1] | PUMP GP-ENGINE OIL | ||
| 10R-1273 | [6] | INJECTOR GP-FUEL | ||
| (EACH INCLUDES) | ||||
| 9X-7317 | [1] | SEAL-O-RING | ||
| 10R-9236 | [1] | KIT-INJECTOR | ||
| 100-6165 | [1] | SPRING-NOZZLE | ||
| 230-3728 | [1] | SEAL-O-RING | ||
| 230-3775 | [1] | SEAL-O-RING | ||
| 10R-3304 | [6] | CYLINDER PACK AS | ||
| (EACH INCLUDES) | ||||
| 238-4737 | [1] | RING-PISTON (INTERMEDIATE) | ||
| 250-2940 | [2] | RETAINER-PIN | ||
| 306-7460 | [1] | BODY AS-PISTON | ||
| 180-7350 | [1] | PIN-PISTON | ||
| 10R-2117 | [1] | ROD AS-CONNECTING | ||
| 7N-2043 | [2] | DOWEL | ||
| 213-3217 M | [4] | BOLT (M11X1.25X84-MM) | ||
| 229-6259 | [1] | BEARING | ||
| 160-9874 | [1] | KIT-GASKET (SINGLE CYLINDER LINER) | ||
| 9L-5854 | [1] | BAND-FILLER (130.2-MM ID) | ||
| 110-2220 | [1] | SEAL-LINER | ||
| 142-6217 | [1] | SEAL-O-RING | ||
| 142-7072 | [1] | SEAL-LINER | ||
| 197-9322 | [1] | LINER-CYLINDER BLOCK | ||
| 237-0194 | [1] | RING-PISTON-TOP | ||
| 238-0294 | [1] | RING-PISTON (OIL) | ||
| 10R-4389 | [1] | CYLINDER HEAD GP | ||
| 211-3122 | [24] | SPRING-VALVE (INNER) | ||
| 247-9908 | [24] | SPRING-VALVE (OUTER) | ||
| 153-7024 | [12] | VALVE-EXHAUST | ||
| 9S-8006 | [1] | PLUG (7/8-14-THD) | ||
| [1] | CYLINDER HEAD AS | |||
| 152-7582 | [12] | INSERT-VALVE SEAT (EXHAUST)(STANDARD) | ||
| 167-0642 AB | INSERT-VALVE SEAT (0.76-MM OS, EXHAUST) | |||
| 170-4737 AB | INSERT-VALVE SEAT (0.51-MM OS, EXHAUST) | |||
| 166-2904 | [12] | SEAL-O-RING | ||
| 175-3617 | [12] | INSERT-VALVE SEAT (INLET)(STANDARD) | ||
| 167-0643 AB | INSERT-VALVE SEAT (0.76-MM OS, INLET) | |||
| 170-4738 AB | INSERT-VALVE SEAT (0.51-MM OS, INLET) | |||
| 216-5582 | [7] | BUSHING (STANDARD) | ||
| 217-0751 AB | BUSHING (0.25-MM OS) | |||
| 217-0752 AB | BUSHING (0.762-MM OS) | |||
| 261-3429 AB | BUSHING (1.778-MM OS) | |||
| 261-3430 AB | BUSHING (1.27-MM OS) | |||
| 263-4920 | [6] | SLEEVE-INJECTOR (INLET) | ||
| 3B-0623 | [17] | PLUG-CUP | ||
| 3B-0645 | [20] | PLUG-CUP (32.08-MM OD) | ||
| 8T-6757 | [3] | PLUG-PIPE | ||
| 9X-7430 | [6] | SEAL-O-RING | ||
| 122-7375 | [24] | GUIDE-VALVE (STANDARD) | ||
| 122-0447 AB | GUIDE-VALVE (0.51-MM OS) | |||
| 122-8612 AB | GUIDE-VALVE (0.13-MM OS) | |||
| 236-5605 | [12] | VALVE-INLET | ||
| 163-2478 | [24] | SEAL-VALVE STEM | ||
| 186-2001 | [24] | ROTOCOIL AS | ||
| 2A-4429 | [48] | LOCK-RETAINER | ||
| 6I-0928 | [24] | WASHER-SPECIAL | ||
| 6V-3251 | [1] | SEAL-O-RING | ||
| 6V-6609 | [2] | SEAL-O-RING | ||
| 9S-8005 | [2] | PLUG (3/4-16-THD) | ||
| 10R-8660 | [1] | PUMP GP-WATER | ||
| [1] | PUMP GP-WATER | |||
| 336-2212 | [1] | SEAL AS-WATER PUMP | ||
| 136-1107 | [1] | RETAINER | ||
| 153-1256 | [1] | SEAL-LIP TYPE | ||
| 195-0319 | [1] | GEAR (74-TEETH) | ||
| 203-3831 | [1] | PLUG-CUP | ||
| 246-3130 | [1] | SHAFT-WATER PUMP | ||
| 108-7930 | [1] | BEARING AS-ROLLER | ||
| 1B-7182 | [4] | BOLT (5/16-18X1.25-IN) | ||
| 246-3129 | [1] | IMPELLER-PUMP | ||
| 303-8698 | [1] | HOUSING AS-PUMP | ||
| 111-2721 | [1] | PLUG-FELT | ||
| 299-7436 | [1] | KIT-GASKET (WATER PUMP) | ||
| 235-5678 | [1] | SEAL-O-RING | ||
| 8T-5917 | [1] | SEAL-O-RING | ||
| 109-0077 | [1] | SEAL-O-RING | ||
| 122-3772 | [1] | SEAL-O-RING | ||
| 125-0434 | [1] | SEAL-INTEGRAL | ||
| 197-8006 | [1] | SEAL-O-RING | ||
