| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | D6M PUMP |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | D6M PUMP | Product Name: | 1078136 PUMP GP-PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA1078136 107-8136 1078136 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
1078136 PUMP GP-PISTON Caterpillar parts D6M PUMP
Product Description
CA1078136
107-8136
1078136
TRACK-TYPE TRACTOR D6M Caterpillar
Caterpillar SIS

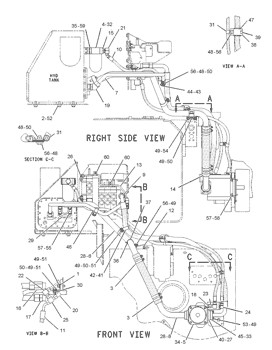

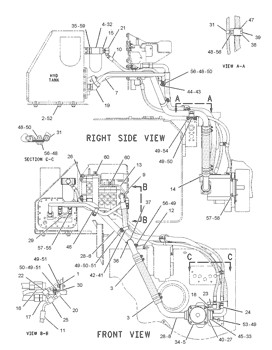

D6M & D6M LGP Track-Type Tractor 2RN00001-UP (MACHINE) POWERED BY 3116 Engine
107-4113 LINES GP-PUMP
S/N 9ZM1-UP; 2RN1-UP
PART OF 107-4473 HYDRAULIC AR-3 VALVE
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 1P-3381 | [1] | BRACKET | |
| 2. | 3W-2647 | [3] | SPACER (13.5X30X10-MM THK) | |
| 3. | 8T-6703 | [4] | CLAMP-HOSE | |
| 4. | 9T-3926 Y | [1] | FILTER & MTG GP-HYDRAULIC | |
| 5. | 107-8136 Y | [1] | PUMP GP-PISTON | |
| 6. | 111-8871 | [1] | TUBE AS | |
| 7. | 111-8872 | [1] | TUBE AS | |
| 8. | 111-9642 | [1] | TUBE AS | |
| 9. | 111-9644 I | [1] | HOSE AS | |
| 10. | 111-9645 I | [1] | HOSE AS | |
| 11. | 111-9646 I | [1] | HOSE AS | |
| 12. | 111-9647 | [1] | BRACKET | |
| 13. | 123-8630 | [1] | TUBE AS | |
| 14. | 5P-1292 BE | HOSE | ||
| 15. | 148-8306 | [1] | ADAPTER AS | |
| 5P-5777 | [1] | ADAPTER-O-RING | ||
| 7M-8485 | [1] | SEAL-O-RING | ||
| 16. | 148-8330 | [1] | CONNECTOR AS | |
| 5K-9090 | [1] | SEAL-O-RING | ||
| 7M-8485 | [1] | SEAL-O-RING | ||
| 8T-0198 | [1] | CONNECTOR | ||
| 17. | 148-8335 | [1] | CONNECTOR AS | |
| 5K-9090 | [1] | SEAL-O-RING | ||
| 6V-8635 | [1] | CONNECTOR | ||
| 7M-8485 | [1] | SEAL-O-RING | ||
| 18. | 148-8340 | [1] | CONNECTOR AS | |
| 3K-0360 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-8639 | [1] | CONNECTOR | ||
| 19. | 148-8355 | [1] | ELBOW AS | |
| 5K-9090 | [1] | SEAL-O-RING | ||
| 6V-9005 | [1] | ELBOW | ||
| 7M-8485 | [1] | SEAL-O-RING | ||
| 20. | 148-8361 | [1] | ELBOW AS (90-DEG) | |
| 3J-7354 | [1] | SEAL-O-RING | ||
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6V-9200 | [1] | ELBOW | ||
| 21. | 148-8364 | [1] | ELBOW AS | |
| 3K-0360 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-8625 | [1] | ELBOW | ||
| 22. | 148-8367 | [1] | ELBOW AS | |
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6V-9850 | [1] | ELBOW | ||
| 23. | 148-8370 | [1] | ELBOW AS | |
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-9851 | [1] | ELBOW | ||
| 24. | 148-8378 | [1] | ELBOW AS | |
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6V-8724 | [1] | ELBOW | ||
| 25. | 148-8433 | [1] | TEE AS | |
| 6V-8397 | [2] | SEAL-O-RING | ||
| 6V-9836 | [1] | TEE-SWIVEL | ||
| 26. | 165-4934 | [1] | PLUG AS | |
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6V-9508 | [1] | PLUG (11/16-16-THD) | ||
| 27. | 1P-3704 | [1] | SEAL-RECTANGULAR | |
| 28. | 1P-3707 | [2] | SEAL-RECTANGULAR | |
| 29. | 1P-5763 | [2] | FLANGE-HALF | |
| 30. | 1S-0994 | [1] | CLIP (LOOP) | |
| 31. | 1S-1015 | [4] | CLIP | |
| 32. | 4F-7391 | [1] | SEAL-O-RING | |
| 33. | 4J-0520 | [1] | SEAL-O-RING | |
| 34. | 5F-3106 | [1] | SEAL-O-RING | |
| 35. | 5P-4116 | [4] | WASHER-HARD (8.8X20.5X2-MM THK) | |
| 36. | 5P-6863 | [1] | CLIP (TAB) | |
| 37. | 5P-6864 | [1] | CLIP (SLOT) | |
| 38. | 5P-7468 | [1] | CLIP (SLOT) | |
| 39. | 5P-7469 | [1] | CLIP (TAB) | |
| 40. | 6J-7035 | [1] | FLANGE | |
| 41. | 7D-7233 | [1] | CLIP (LOOP) | |
| 42. | 7L-6326 | [1] | CLIP | |
| 43. | 7S-3916 | [1] | CLIP (TAB) | |
| 44. | 7S-3919 | [1] | CLIP (SLOT) | |
| 45. | 8C-3206 | [2] | FLANGE-HALF | |
| 46. | 8S-0948 | [1] | CLIP | |
| 47. | 8T-2525 | [1] | GROMMET | |
| 48. | 8T-2561 | [5] | WASHER-HARD (10.5X28.5X5-MM THK) | |
| 49. | 8T-4121 | [13] | WASHER-HARD (11X21X2.5-MM THK) | |
| 50. | 8T-4133 M | [5] | NUT (M10X1.5-THD) | |
| 51. | 8T-4136 M | [3] | BOLT (M10X1.5X25-MM) | |
| 52. | 8T-4139 M | [3] | BOLT (M12X1.75X30-MM) | |
| 53. | 8T-4185 M | [4] | BOLT (M10X1.5X50-MM) | |
| 54. | 8T-4186 M | [2] | BOLT (M10X1.5X40-MM) | |
| 55. | 8T-4194 M | [4] | BOLT (M12X1.75X50-MM) | |
| 56. | 8T-4195 M | [4] | BOLT (M10X1.5X30-MM) | |
| 57. | 8T-4223 | [8] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 58. | 8T-4244 M | [4] | NUT (M12X1.75-THD) | |
| 59. | 8T-4908 M | [4] | BOLT (M8X1.25X25-MM) | |
| 60. | 9S-1350 | [2] | CLIP |
