| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 324D, 325C, 325D L, 328D LCR, 330C, 330C FM, 330C L, 330D, 330D FM, 330D L, 330D LN, 336D, 336D L, 336D LN, 340D L, 345C, 345C L, 345D L, 349D, 349D L, 385C L |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 324D, 325C, 325D L, 328D LCR, 330C, 330C FM, 330C L, 330D, 330D FM, 330D L, 330D LN, 336D, 336D L, 336D LN, 340D L, 345C, 345C L, 345D L, 349D, 349D L, 385C L | Product Name: | 1915603 PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA1915603 191-5603 1915603 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
1915603 PISTON Caterpillar parts 324D, 325C, 325D L, 328D LCR, 330C, 330C FM, 330C L, 330D, 330D FM, 330D L, 330D LN, 336D, 336D L, 336D LN, 340D L, 345C, 345C L, 345D L, 349D, 349D L, 385C L
Product Description
CA1915603
191-5603
1915603
EXCAVATOR 324D 325C 325D L 328D LCR 330C 330C FM 330C L 330D 330D FM 330D L 330D LN 336D 336D L 336D LN 340D L 345C 345C L 345D L 349D 349D L 385C L
MOBILE HYD POWER UNIT 330C 330D 330D L 336D L Caterpillar
336D2 L Excavator MBP00001-UP (MACHINE) POWERED BY C9 Engine

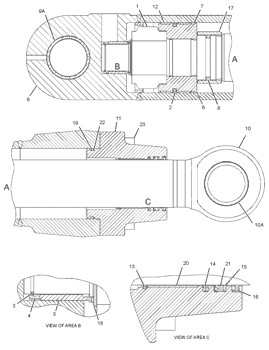

289-8031 CYLINDER GP-STICK
S/N MBP1-UP
170-MM (6.7-IN) BORE X 1738-MM (68.4-IN) STROKE
PART OF 289-8030 CYLINDER & SEAL GP-STICK
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 7Y-4956 M | [1] | LOCKNUT (M90X2-THD) | |
| 2. | 9X-3607 J | [1] | SEAL AS | |
| 3. | 103-8345 | [1] | RING-RETAINING | |
| 4. | 107-6579 | [1] | RING | |
| 5. | 107-6933 | [1] | STOP | |
| 6. | 191-5603 | [1] | PISTON | |
| 7. | 191-5605 J | [1] | RING | |
| 8. | 231-6843 J | [1] | RING-SEAL | |
| 9. | 289-8032 | [1] | CYLINDER AS-HYDRAULIC | |
| 9A. | 241-7342 | [1] | BUSHING | |
| 10. | 289-8037 | [1] | ROD AS | |
| 10A. | 241-7342 | [1] | BUSHING | |
| 11. | 191-5602 | [1] | HEAD | |
| 12. | 191-5604 J | [2] | RING | |
| 13. | 191-5643 | [1] | RING-RETAINING |
| 1590308 Piston | Engine | 159-0308 | Ring | 8J6730 Pump Group Piston | Cylinder Liner | 8J-6730 |
| 1606600 Piston | Engine | 160-6600 | Ring | 8N0822 Ring Group Piston | Cylinder Liner | 8N-0822 |
| 1607994 Body A | Engine | 160-7994 | Ring | 9R9408 Piston Rear Brake | Cylinder Liner | 9R-9408 |
| 1656969 Piston | Engine | 165-6969 | Ring | 9R9408 Piston Rear Brake | Cylinder Liner | 9R-9408 |
| 1684531 Body A | Engine | 168-4531 | Ring | 9T2306 Pump Group Piston | Cylinder Liner | 9T-2306 |
| 1684538 Tube A | Engine | 168-4538 | Ring | 9T2306 Pump Group Piston | Cylinder Liner | 9T-2306 |
| 1692969 Piston | Engine | 169-2969 | Ring | 9T3680 Pump Group Piston | Cylinder Liner | 9T-3680 |
| 1722353 Piston | Engine | 172-2353 | Ring | 9T3680 Pump Group Piston | Cylinder Liner | 9T-3680 |
| 1769273 Piston | Engine | 176-9273 | Ring | 9T6857 Pump Group Piston | Cylinder Liner | 9T-6857 |
| 1786546 Piston | Engine | 178-6546 | Ring | 9T6857 Pump Group Piston | Cylinder Liner | 9T-6857 |
| 1850232 Piston | Engine | 185-0232 | Ring | 9T8346 Pump Group Piston | Cylinder Liner | 9T-8346 |
| 1884216 Piston | Engine | 188-4216 | Ring | 9T8346 Pump Group Piston | Cylinder Liner | 9T-8346 |
| 1902279 Pump G | Engine | 190-2279 | Ring | 9T8647 Pump Group Piston | Cylinder Liner | 9T-8647 |
| 1915603 Piston | Engine | 191-5603 | Ring | 9T8647 Pump Group Piston | Cylinder Liner | 9T-8647 |
| 1915709 Piston | Engine | 191-5709 | Ring | 9T9912 Pump Group Piston | Cylinder Liner | 9T-9912 |
