| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 613C, 613C II, 613G, 950F II, 950G, 950G II, 950H, 950K, 960F, 962G, 962G II, 962H, 962K, 966H, 966K, 966M, IT62G, IT62G II, IT62H, R1300, R1300G, R1300G |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 613C, 613C II, 613G, 950F II, 950G, 950G II, 950H, 950K, 960F, 962G, 962G II, 962H, 962K, 966H, 966K, 966M, IT62G, IT62G II, IT62H, R1300, R1300G, R1300G | Product Name: | 1769273 PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA1769273 176-9273 1769273 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
1769273 PISTON Caterpillar parts 613C, 613C II, 613G, 950F II, 950G, 950G II, 950H, 950K, 960F, 962G, 962G II, 962H, 962K, 966H, 966K, 966M, IT62G, IT62G II, IT62H, R1300, R1300G, R1300G
Product Description
CA1769273
176-9273
1769273
INTEGRATED TOOLCARRIER IT62G IT62G II IT62H
LOAD HAUL DUMP R1300 R1300G R1300G II
WHEEL LOADER 950F II 950G 950G II 950H 950K 960F 962G 962G II 962H 962K 966H 966K 966M
WHEEL TRACTOR 613C 613C II
WHEEL TRACTOR-SCRAPER 613G Caterpillar

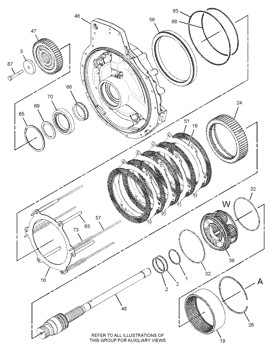

966M Wheel Loader MD700001-UP (MACHINE) POWERED BY C9.3 Engine
365-2307 PLANETARY GP-TRANSMISSION
S/N WL21-UP; KPD1-UP; ESR1-UP
PART OF 365-2326 TRANSMISSION AR
Information
| 1. | 3K-1432 | [2] | RING-METAL SEAL | |
| 2. | 3P-7019 | [2] | SEAL-METAL | |
| 3. | 4S-5824 | [1] | RETAINER | |
| 4. | 6P-2233 | [3] | GEAR-PLANETARY (20-TEETH) | |
| 5. | 6P-7742 | [4] | SHAFT-PLANETARY | |
| 6. | 6P-7743 | [4] | SHAFT-PLANETARY | |
| 7. | 6P-7968 | [4] | PLATE-CLUTCH | |
| 8. | 6P-7983 | [1] | RING-RETAINING | |
| 9. | 6P-7985 | [2] | RING-SEAL | |
| 10. | 6P-8003 | [4] | GEAR (27-TEETH) | |
| 11. | 6P-8005 | [8] | GEAR (23-TEETH) | |
| 12. | 6Y-5952 | [1] | GEAR AS-SUN (42-TEETH) | |
| 6Y-2109 | [1] | CARRIER-SEAL | ||
| 13. | 6Y-7880 | [4] | SHAFT-PLANETARY | |
| 14. | 6Y-8030 | [1] | RING-SEAL | |
| 15. | 6Y-9713 | [1] | GEAR AS-SUN (44-TEETH) | |
| 8S-0527 | [2] | PLUG-CUP | ||
| 16. | 7G-0437 | [20] | PLATE-CLUTCH | |
| 17. | 7G-3711 | [1] | GEAR-RING (82-TEETH) | |
| 18. | 7G-5444 | [1] | CARRIER-PLANETARY | |
| 19. | 7G-5569 | [1] | GEAR-RING (83-TEETH) | |
| 20. | 7G-5572 | [1] | GEAR-SUN (29-TEETH) | |
| 21. | 7G-5593 | [1] | GEAR-SUN (38-TEETH) | |
| 22. | 7G-5594 | [1] | GEAR-SUN (38-TEETH) | |
| 23. | 7G-5614 | [3] | SHAFT-PLANETARY | |
| 24. | 7G-6061 | [1] | COUPLING | |
| 25. | 7G-6062 | [1] | GEAR-RING (82-TEETH) | |
| 26. | 7G-8121 | [2] | RING-LOCK | |
| 27. | 7T-1285 | [4] | GEAR-PLANETARY (23-TEETH) | |
| 28. | 8D-2714 | [4] | SEAL-O-RING | |
| 29. | 8E-1666 | [1] | PLATE-RETAINER | |
| 30. | 8E-8297 | [6] | DISC-THRUST | |
| 31. | 8E-8299 | [32] | DISC-THRUST | |
| 32. | 8P-8950 | [2] | RING-METAL SEAL | |
| 33. | 8P-9723 | [1] | RING-SEAL | |
| 34. | 9G-1234 | [5] | SPRING-DISC | |
| 35. | 9G-1491 | [1] | CARRIER-PLANETARY | |
| 36. | 9M-1503 | [1] | RING-METAL SEAL | |
| 37. | 9N-4460 | [1] | HOUSING AS-CLUTCH | |
| 3S-8109 | [1] | PIN-SPRING | ||
| 4S-8537 | [1] | DOWEL | ||
| 38. | 9P-5558 | [1] | RING-RETAINING | |
| 39. | 9W-0517 | [1] | CARRIER-PLANETARY | |
| 40. | 9W-0518 | [1] | CARRIER-RING | |
| 41. | 9W-0519 | [1] | DISC-THRUST | |
| 42. | 112-7847 | [1] | HOUSING | |
| 43. | 176-9273 | [1] | PISTON | |
| 44. | 186-2517 | [1] | GEAR-RING (82-TEETH) | |
| 45. | 213-3719 | [1] | PLATE-REACTION | |
| 46. | 237-5747 | [1] | HOUSING-CLUTCH | |
| 47. | 237-9060 | [1] | GEAR (51-TEETH) | |
| 48. | 237-9061 | [1] | SHAFT-INPUT | |
| 49. | 237-9067 | [1] | CARRIER-PLANETARY | |
| 50. | 353-2622 | [1] | SHAFT AS-OUTPUT | |
| 8S-3426 | [1] | DOWEL | ||
| 9G-7683 | [2] | BUSHING | ||
| 51. | 355-2617 | [19] | DISC-FRICTION |
| 1656969 Piston | Engine | 165-6969 | Ring | 9R9408 Piston Rear Brake | Cylinder Liner |
| 1684531 Body A | Engine | 168-4531 | Ring | 9T2306 Pump Group Piston | Cylinder Liner |
| 1684538 Tube A | Engine | 168-4538 | Ring | 9T2306 Pump Group Piston | Cylinder Liner |
| 1692969 Piston | Engine | 169-2969 | Ring | 9T3680 Pump Group Piston | Cylinder Liner |
| 1722353 Piston | Engine | 172-2353 | Ring | 9T3680 Pump Group Piston | Cylinder Liner |
| 1769273 Piston | Engine | 176-9273 | Ring | 9T6857 Pump Group Piston | Cylinder Liner |
| 1786546 Piston | Engine | 178-6546 | Ring | 9T6857 Pump Group Piston | Cylinder Liner |
| 1850232 Piston | Engine | 185-0232 | Ring | 9T8346 Pump Group Piston | Cylinder Liner |
| 1884216 Piston | Engine | 188-4216 | Ring | 9T8346 Pump Group Piston | Cylinder Liner |
| 1902279 Pump G | Engine | 190-2279 | Ring | 9T8647 Pump Group Piston | Cylinder Liner |
| 1915603 Piston | Engine | 191-5603 | Ring | 9T8647 Pump Group Piston | Cylinder Liner |
| 1915709 Piston | Engine | 191-5709 | Ring | 9T9912 Pump Group Piston | Cylinder Liner |
| 1922209 Body A | Engine | 192-2209 | Ring | 9T9912 Pump Group Piston | Cylinder Liner |
| 1979335 Pin As | Engine | 197-9335 | Ring | Rs3406E1 Ring Set Piston | Cylinder Liner |
