| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 416E, 416F, 420E, 420F PISTON |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 416E, 416F, 420E, 420F PISTON | Product Name: | 2289572 PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA2289572 228-9572 2289572 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
2289572 PISTON Caterpillar parts 416E, 416F, 420E, 420F PISTON
Product Description
CA2289572
228-9572
2289572
BACKHOE LOADER 416E 416F 420E 420F Caterpillar
416E Backhoe Loader Single Tilt Center Pivot SHA00001-UP (MACHINE) POWERED BY 3054C Engine

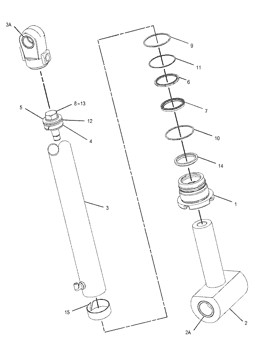

210-7088 CYLINDER GP-BACKHOE BUCKET
S/N SHA1-UP
88.9-MM (3.5-IN) BORE X 852-MM (33.5-IN) STROKE
PART OF 209-9929 BACKHOE AR-EXTENDABLE STICK, 209-9924 BACKHOE AR-STANDARD STICK
AN ATTACHMENT
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 187-3510 | [1] | HEAD | |
| 2. | 213-4616 | [1] | ROD AS | |
| 2A. | 9R-0162 | [2] | BUSHING | |
| 3. | 213-4620 | [1] | CYLINDER AS | |
| 3A. | 9R-0139 | [2] | BUSHING | |
| 4. | 223-3356 J | [1] | RING-WEAR | |
| 5. | 228-9572 | [1] | PISTON | |
| 6. | 289-2937 J | [1] | SEAL AS-BUFFER | |
| 7. | 289-2948 J | [1] | SEAL-U-CUP | |
| 8. | 173-9683 M | [1] | BOLT (M30X3.5X90-MM) | |
| 9. | 6V-6707 J | [1] | SEAL-O-RING | |
| 10. | 2H-4145 J | [1] | SEAL-O-RING | |
| 11. | 4J-9224 J | [1] | RING-BACKUP | |
| 12. | 4T-8054 CJ | [1] | SEAL AS | |
| 13. | 9X-8399 | [1] | WASHER (33X56X6-MM THK) | |
| 14. | 289-2956 J | [1] | SEAL-WIPER | |
| 15. | 8T-0785 J | [1] | RING-WEAR | |
| AVAILABLE REPAIR KIT(S): | ||||
| 338-7038 J | [1] | KIT-HYD CYLINDER SEAL (BACKHOE BUCKET) | ||
OME
| 9N5250 Piston Group | Engine | 9N-5250 | Ring | 9Y7212 Body As Piston | Cylinder Liner | 9Y-7212 | 9N-5250 Engine 9Y7212 Body As Piston Cylinder Liner 9N5250 Piston Group Ring 9Y-7212 |
| 9P6799 Pistonclutch | Engine | 9P-6799 | Ring | 9Y7212 Body As Piston | Cylinder Liner | 9Y-7212 | 9Y-7212 Ring 9Y7212 Body As Piston Engine 9P-6799 Cylinder Liner 9P6799 Pistonclutch |
| 9P6799 Pistonclutch | Engine | 9P-6799 | Ring | 9Y7452 Body As Piston | Cylinder Liner | 9Y-7452 | 9Y7452 Body As Piston Cylinder Liner 9P-6799 Engine 9Y-7452 Ring 9P6799 Pistonclutch |
| 9S3068 Piston Group | Engine | 9S-3068 | Ring | 9Y7452 Body As Piston | Cylinder Liner | 9Y-7452 | 9S3068 Piston Group Engine 9S-3068 Ring 9Y7452 Body As Piston Cylinder Liner 9Y-7452 |
| 9S3068 Piston Group | Engine | 9S-3068 | Ring | 9Y9889 Body As Piston | Cylinder Liner | 9Y-9889 | 9S-3068 Engine 9Y9889 Body As Piston Cylinder Liner 9S3068 Piston Group Ring 9Y-9889 |
