199-0706 Engine Rs3406E2 Ring Set Piston Cylinder Liner 1990706 Piston Ring 34-0600

199-0706 Engine Rs3406E2 Ring Set Piston Cylinder Liner 1990706 Piston Ring 34-0600
199-0706 Engine Rs3406E2 Ring Set Piston Cylinder Liner 1990706 Piston Ring 34-0600
Basic Information
Place of Origin: China
Brand Name: Caterpillar
Certification: 68555435543
Model Number: 414E, 416E, 416F, 420E, 420F, 422E, 422F, 428E, 428F, 430E, 430F, 432E, 432F, 434E, 434F, 442E, 444E, 444F, 450E, 450F, TH220B, TH330B, TH340B, TH350B, TH355B, TH460B, TH560B, TH580B
Minimum Order Quantity: 1
Price: Price negotiation
Packaging Details: box
Delivery Time: 3-5
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10
Contact Now
Model OEM: 414E, 416E, 416F, 420E, 420F, 422E, 422F, 428E, 428F, 430E, 430F, 432E, 432F, 434E, 434F, 442E, 444E, 444F, 450E, 450F, TH220B, TH330B, TH340B, TH350B, TH355B, TH460B, TH560B, TH580B Product Name: 1990706 PISTON Caterpillar Parts
Cross Code: CA1990706 199-0706 1990706 Other Name: Piston Kit
Sort: Cylinder Liner Application: Engine Parts
Applicable: Excavator Parts Weight: XX Kg.

1990706 PISTON Caterpillar parts 414E, 416E, 416F, 420E, 420F, 422E, 422F, 428E, 428F, 430E, 430F, 432E, 432F, 434E, 434F, 442E, 444E, 444F, 450E, 450F, TH220B, TH330B, TH340B, TH350B, TH355B, TH460B, TH560B, TH580B

Product Description

CA1990706
199-0706
1990706



BACKHOE LOADER 414E 416E 416F 420E 420F 422E 422F 428E 428F 430E 430F 432E 432F 434E 434F 442E 444E 444F 450E 450F
TELEHANDLER TH220B TH330B TH340B TH350B TH355B TH460B TH560B TH580B Caterpillar

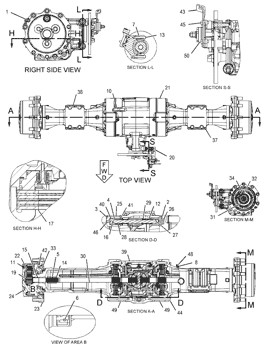

426F2 Backhoe Loader Side Shift EJ400001-UP (MACHINE) POWERED BY C4.4 Engine



AXLE GP-REAR

230-5738 AXLE GP-REAR
S/N EJ41500-UP
PART OF 547-9080 DRIVE AR-BACKHOE LOADER



Information


Pos. Part No Qty Parts name Comments
1. 8C-7505 M [4] SCREW-FLAT HEAD (M8X1.25X20-MM)
2. 6V-3940 M [2] BOLT (M8X1.25X25-MM)
3. 8T-0292 M [2] BOLT (M8X1.25X90-MM)
4. 199-0652 [2] CLIP (PIN)
5. 9X-6378 [2] RING-RETAINING
6. 210-3098 [2] SEAL
7. 199-0688 [2] SHIM (2.9-MM THK)
8. 055-1990 [1] VENT (AXLE, REAR)
10. 198-7811 [2] DOWEL
11. 152-6144 [4] PLUG AS-DRAIN (MAGNETIC)(AXLE, REAR)
      (EACH INCLUDES)
  6V-6228 [1] SEAL-O-RING
12. 199-0676 [2] SPRING
13. 199-0679 M [2] BOLT (M16X2X95-MM)
14. 210-3099 [2] SLEEVE
15. 210-3100 [2] BUSHING
16. 199-0706 [1] PISTON
17. 316-1926 [2] DISC AS-BRAKE
      (EACH INCLUDES)
  199-0786 [4] PLATE
  199-0787 [3] PIN
  238-5291 [3] DISC-BRAKE
  238-5292 [1] HUB-BRAKE
19. 210-7305 [2] SHAFT
20. 210-3106 [1] BRACKET
21. 212-5713 [2] PLUG AS
      (EACH INCLUDES)
  033-6041 [1] SEAL-O-RING
22. 216-1608 [2] GEAR GP-RING
      (EACH INCLUDES)
  199-0778 [1] RING-SNAP
  210-7302 [1] GEAR-RING (81-TEETH)
  226-4364 [1] HUB
23. 216-1609 Y [2] FLANGE GP-WHEEL
24. 216-1610 Y [2] PLANETARY GP-FINAL DRIVE (AXLE)
25. 217-2914 [1] COVER (DIFFERENTIAL LOCK)
26. 231-0699 [1] COVER (DIFFERENTIAL LOCK)
27. 219-8839 [1] ROD
28. 174-4647 [1] BUSHING
29. 174-4650 [1] SPACER (20X32X8-MM THK)
30. 231-0698 [2] SHAFT-AXLE
31. 226-4366 [2] NUT-SPANNER
32. 226-4365 [2] WASHER-TAB
33. 226-4367 [2] SPACER (110X123X22.99-MM THK)
34. 226-4370 [6] BOLT-SELF-LOCKING
37. 238-5293 [1] HOUSING-AXLE (LH)
38. 238-5294 [1] HOUSING-AXLE (RH)
39. 478-2180 CY [1] HOUSING GP-AXLE (REAR)
40. 4F-9029 [2] SEAL
41. 4D-3107 [2] SEAL-O-RING
42. 5H-4909 [2] SEAL-O-RING
43. 130-7282 [1] BRACKET
44. 7X-2559 M [26] BOLT (M16X2X160-MM)
45. 4L-6454 [2] BOLT (3/8-16X1-IN)
46. 162-0177 [1] PLUG AS
  3J-1907 [1] SEAL-O-RING
  9S-8004 [1] PLUG (9/16-18-THD)
48. 219-8795 [1] CAP
49. 1U-8846 B   SEALANT-GASKET
50. 259-0127 JLN [1] BRAKE GP-MECH CALIPER PARKING
  1B-4430 [1] NUT-JAM (1/2-20-THD)
  7X-3374 [1] NUT-FULL (1/2-20-THD)

      AVAILABLE REPAIR KIT(S):
  166-9413 J [1] KIT-CAM (COUNTERCLOCKWISE)(PARKING BRAKE)
      (INCLUDES CAMS, BEARINGS & RETAINER)
  259-0128 L [1] KIT-BRAKE LINING
      (INCLUDES LINING AS & SPRING)
  259-0129 N [1] KIT-BRAKE CALIPER


 OEM

1589064 Piston Engine 158-9064 Ring 7N9805 Pin Hollow Piston Cylinder Liner 7N-9805
1590308 Piston Engine 159-0308 Ring 8J6730 Pump Group Piston Cylinder Liner 8J-6730
1606600 Piston Engine 160-6600 Ring 8N0822 Ring Group Piston Cylinder Liner 8N-0822
1607994 Body A Engine 160-7994 Ring 9R9408 Piston Rear Brake Cylinder Liner 9R-9408
1656969 Piston Engine 165-6969 Ring 9R9408 Piston Rear Brake Cylinder Liner 9R-9408
1684531 Body A Engine 168-4531 Ring 9T2306 Pump Group Piston Cylinder Liner 9T-2306
1684538 Tube A Engine 168-4538 Ring 9T2306 Pump Group Piston Cylinder Liner 9T-2306
1692969 Piston Engine 169-2969 Ring 9T3680 Pump Group Piston Cylinder Liner 9T-3680
1722353 Piston Engine 172-2353 Ring 9T3680 Pump Group Piston Cylinder Liner 9T-3680
1769273 Piston Engine 176-9273 Ring 9T6857 Pump Group Piston Cylinder Liner 9T-6857
1786546 Piston Engine 178-6546 Ring 9T6857 Pump Group Piston Cylinder Liner 9T-6857
1850232 Piston Engine 185-0232 Ring 9T8346 Pump Group Piston Cylinder Liner 9T-8346
1884216 Piston Engine 188-4216 Ring 9T8346 Pump Group Piston Cylinder Liner 9T-8346
1902279 Pump G Engine 190-2279 Ring 9T8647 Pump Group Piston Cylinder Liner 9T-8647
1915603 Piston Engine 191-5603 Ring 9T8647 Pump Group Piston Cylinder Liner 9T-8647
1915709 Piston Engine 191-5709 Ring 9T9912 Pump Group Piston Cylinder Liner 9T-9912
1922209 Body A Engine 192-2209 Ring 9T9912 Pump Group Piston Cylinder Liner 9T-9912
1979335 Pin As Engine 197-9335 Ring Rs3406E1 Ring Set Piston Cylinder Liner 34-0600
1990706 Piston Engine 199-0706 Ring Rs3406E2 Ring Set Piston Cylinder Liner 34-0600
2131152 Piston Engine 213-1152 Ring Rs4P2654 Ring Set Piston Cylinder Liner 4P-2654
2179778 Piston Engine 217-9778 Ring Rs4P8996 Ring Set Piston Cylinder Liner 4P-8996
2254284 Piston Engine 225-4284 Ring Rs7E3888 Ring Set Piston Cylinder Liner 7E-3888
2264961 Piston Engine 226-4961 Ring Tak2874 Piston Liner Kit Cylinder Liner Tak-2874

199-0706 Engine Rs3406E2 Ring Set Piston Cylinder Liner 1990706 Piston Ring 34-0600 0
