Name: 191-5603 Engine 9T8647 Pump Group Piston Cylinder Liner 1915603 Piston Ring 9T-8647
Brand: Caterpillar
SKU: 324D, 325C, 325D L, 328D LCR, 330C, 330C FM, 330C L, 330D, 330D FM, 330D L, 330D LN, 336D, 336D L, 336D LN, 340D L, 345C, 345C L, 345D L, 349D, 349D L, 385C
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (168 reviews)

1915603 PISTON Caterpillar parts 324D, 325C, 325D L, 328D LCR, 330C, 330C FM, 330C L, 330D, 330D FM, 330D L, 330D LN, 336D, 336D L, 336D LN, 340D L, 345C, 345C L, 345D L, 349D, 349D L, 385C

Product Description

CA1915603
191-5603
1915603

EXCAVATOR 324D 325C 325D L 328D LCR 330C 330C FM 330C L 330D 330D FM 330D L 330D LN 336D 336D L 336D LN 340D L 345C 345C L 345D L 349D 349D L 385C L
MOBILE HYD POWER UNIT 330C 330D 330D L 336D L Caterpillar

336D2 L Excavator MBP00001-UP (MACHINE) POWERED BY C9 Engine

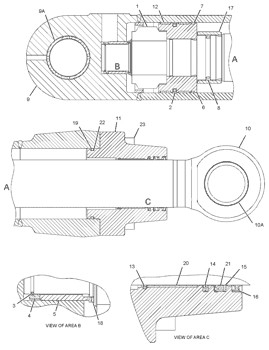

289-8031: CYLINDER GP-STICK » M00766580303

CYLINDER GP-STICK

289-8031 CYLINDER GP-STICK
S/N MBP1-UP
170-MM (6.7-IN) BORE X 1738-MM (68.4-IN) STROKE
PART OF 289-8030 CYLINDER & SEAL GP-STICK

Information

Pos.	Part No	Qty	Parts name
1.	7Y-4956 M	[1]	LOCKNUT (M90X2-THD)
2.	9X-3607 J	[1]	SEAL AS
3.	103-8345	[1]	RING-RETAINING
4.	107-6579	[1]	RING
5.	107-6933	[1]	STOP
6.	191-5603	[1]	PISTON
7.	191-5605 J	[1]	RING
8.	231-6843 J	[1]	RING-SEAL
9.	289-8032	[1]	CYLINDER AS-HYDRAULIC
9A.	241-7342	[1]	BUSHING
10.	289-8037	[1]	ROD AS
10A.	241-7342	[1]	BUSHING
11.	191-5602	[1]	HEAD
12.	191-5604 J	[2]	RING
13.	191-5643	[1]	RING-RETAINING
14.	191-5645 J	[1]	SEAL-BUFFER
15.	191-5647 J	[1]	RING-BACKUP
16.	191-5648 J	[1]	SEAL-LIP TYPE
17.	191-5705	[1]	STOP
18.	095-0930	[2]	RING-RETAINING (EXTERNAL)
19.	095-1726 J	[1]	SEAL-O-RING
20.	191-5644	[1]	BUSHING
21.	191-5646 J	[1]	SEAL-U-CUP
22.	7Y-4945 J	[1]	RING-BACKUP
23.	7Y-5239 M	[8]	BOLT-SOCKET HEAD (M24X3X100-MM)

			AVAILABLE REPAIR KIT(S):
	231-6844 J	[1]	KIT-SEAL (STICK CYLINDER)

OEM

1308412 Piston	Engine	130-8412	Ring	7E5214 Ring Group Piston	Cylinder Liner	7E-5214
1589064 Piston	Engine	158-9064	Ring	7N9805 Pin Hollow Piston	Cylinder Liner	7N-9805
1590308 Piston	Engine	159-0308	Ring	8J6730 Pump Group Piston	Cylinder Liner	8J-6730
1606600 Piston	Engine	160-6600	Ring	8N0822 Ring Group Piston	Cylinder Liner	8N-0822
1607994 Body A	Engine	160-7994	Ring	9R9408 Piston Rear Brake	Cylinder Liner	9R-9408
1656969 Piston	Engine	165-6969	Ring	9R9408 Piston Rear Brake	Cylinder Liner	9R-9408
1684531 Body A	Engine	168-4531	Ring	9T2306 Pump Group Piston	Cylinder Liner	9T-2306
1684538 Tube A	Engine	168-4538	Ring	9T2306 Pump Group Piston	Cylinder Liner	9T-2306
1692969 Piston	Engine	169-2969	Ring	9T3680 Pump Group Piston	Cylinder Liner	9T-3680
1722353 Piston	Engine	172-2353	Ring	9T3680 Pump Group Piston	Cylinder Liner	9T-3680
1769273 Piston	Engine	176-9273	Ring	9T6857 Pump Group Piston	Cylinder Liner	9T-6857
1786546 Piston	Engine	178-6546	Ring	9T6857 Pump Group Piston	Cylinder Liner	9T-6857
1850232 Piston	Engine	185-0232	Ring	9T8346 Pump Group Piston	Cylinder Liner	9T-8346
1884216 Piston	Engine	188-4216	Ring	9T8346 Pump Group Piston	Cylinder Liner	9T-8346
1902279 Pump G	Engine	190-2279	Ring	9T8647 Pump Group Piston	Cylinder Liner	9T-8647
1915603 Piston	Engine	191-5603	Ring	9T8647 Pump Group Piston	Cylinder Liner	9T-8647
1915709 Piston	Engine	191-5709	Ring	9T9912 Pump Group Piston	Cylinder Liner	9T-9912
1922209 Body A	Engine	192-2209	Ring	9T9912 Pump Group Piston	Cylinder Liner	9T-9912
1979335 Pin As	Engine	197-9335	Ring	Rs3406E1 Ring Set Piston	Cylinder Liner	34-0600
1990706 Piston	Engine	199-0706	Ring	Rs3406E2 Ring Set Piston	Cylinder Liner	34-0600
2131152 Piston	Engine	213-1152	Ring	Rs4P2654 Ring Set Piston	Cylinder Liner	4P-2654

Tag:

Place of Origin:	China
Brand Name:	Caterpillar
Certification:	68555435543
Model Number:	324D, 325C, 325D L, 328D LCR, 330C, 330C FM, 330C L, 330D, 330D FM, 330D L, 330D LN, 336D, 336D L, 336D LN, 340D L, 345C, 345C L, 345D L, 349D, 349D L, 385C

Minimum Order Quantity:	1
Price:	Price negotiation
Packaging Details:	box
Delivery Time:	3-5
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	10

Model OEM:	324D, 325C, 325D L, 328D LCR, 330C, 330C FM, 330C L, 330D, 330D FM, 330D L, 330D LN, 336D, 336D L, 336D LN, 340D L, 345C, 345C L, 345D L, 349D, 349D L, 385C	Product Name:	1915603 PISTON Caterpillar Parts
Cross Code:	CA1915603 191-5603 1915603	Other Name:	Piston Kit
Sort:	Cylinder Liner	Application:	Engine Parts
Applicable:	Excavator Parts	Weight:	XX Kg.
