| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 416C, 416D, 420D, 426C, 430D, 436C, 583T, PL83 PISTON |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 416C, 416D, 420D, 426C, 430D, 436C, 583T, PL83 PISTON | Product Name: | 1722353 PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA1722353 172-2353 1722353 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
1722353 PISTON Caterpillar parts 416C, 416D, 420D, 426C, 430D, 436C, 583T, PL83 PISTON
Product Description
CA1722353
172-2353
1722353
BACKHOE LOADER 416C 416D 420D 426C 430D 436C
PIPELAYER 583T PL83 Caterpillar

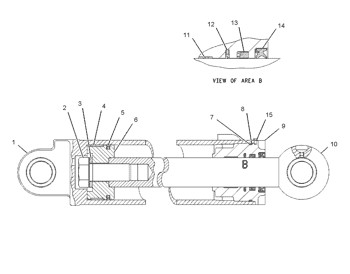

436C Backhoe Loader Center Pivot, Parallel Lift 1RR00001-00997 (MACHINE) POWERED BY 3054 Engine
173-1926 CYLINDER GP-STABILIZER -RH
S/N 2BR1-910
102MM (4.02IN) BORE X 541MM (21.30IN) STROKE
PART OF 154-5444 HYDRAULIC AR
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 172-2347 | [1] | CYLINDER AS | |
| 9R-0321 | [2] | BUSHING | ||
| 7J-9903 | [1] | BOSS | ||
| 2. | 7F-6112 | [1] | BOLT (1-1/4-12X3-IN) | |
| 3. | 4K-0684 | [1] | WASHER-HARD (34X55X6-MM THK) | |
| 4. | 6J-2797 | [1] | RING-WEAR | |
| 5. | 5J-5402 | [1] | SEAL AS | |
| 6. | 172-2353 | [1] | PISTON | |
| 7. | 175-7900 | [1] | SEAL-O-RING | |
| 8. | 168-2271 | [1] | RING-BACKUP | |
| 9. | 152-1863 | [1] | HEAD | |
| 10. | 172-2354 | [1] | ROD AS | |
| 9R-0321 | [2] | BUSHING | ||
| 11. | 4T-6128 | [1] | RING | |
| 12. | 167-2197 | [1] | SEAL AS-BUFFER | |
| 13. | 167-2305 | [1] | SEAL-U-CUP | |
| 14. | 167-2458 | [1] | SEAL-WIPER | |
| 15. | 6V-6718 M | [1] | SCREW-SELF-TAPPING (8-32X0.25-IN) |
OME
| 7D6233 Seal Piston | Engine | 7D-6233 | Ring | 9P5363 Piston Clutch | Cylinder Liner | 9P-5363 | 7D6233 Seal Piston Engine 7D-6233 Ring 9P5363 Piston Clutch Cylinder Liner 9P-5363 |
| 7E6047 Ring Piston | Engine | 7E-6047 | Ring | 9P6800 Piston Clutch | Cylinder Liner | 9P-6800 | 7E-6047 Engine 9P6800 Piston Clutch Cylinder Liner 7E6047 Ring Piston Ring 9P-6800 |
| 7E7581 Ring Piston | Engine | 7E-7581 | Ring | 9P6800 Piston Clutch | Cylinder Liner | 9P-6800 | 9P-6800 Ring 9P6800 Piston Clutch Engine 7E-7581 Cylinder Liner 7E7581 Ring Piston |
| 7N1366 Body Piston | Engine | 7N-1366 | Ring | 9T3018 Piston Assem. | Cylinder Liner | 9T-3018 | 9T3018 Piston Assem. Cylinder Liner 7N-1366 Engine 9T-3018 Ring 7N1366 Body Piston |
| 7N3759 Ring Piston | Engine | 7N-3759 | Ring | 9T3018 Piston Assem. | Cylinder Liner | 9T-3018 | 7N3759 Ring Piston Engine 7N-3759 Ring 9T3018 Piston Assem. Cylinder Liner 9T-3018 |
