| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 245B PUMP |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 245B PUMP | Product Name: | 9T2306 PUMP GP-PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA9T2306 9T-2306 9T2306 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
9T2306 PUMP GP-PISTON Caterpillar parts 245B PUMP
Product Description
CA9T2306
9T-2306
9T2306
EXCAVATOR 245B Caterpillar
Caterpillar SIS

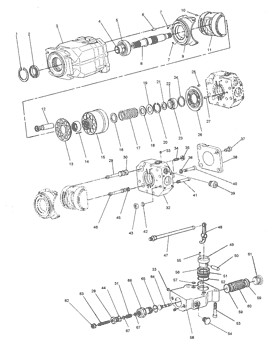

9T2306 PUMP GP-PISTON-SLIPPER
SWING
S/N 6MF68-UP
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 7X-2439 | [1] | RING-RETAINING | |
| 2. | 7X-1553 | [1] | SEAL-LIP TYPE | |
| 3. | 9T-7738 | [1] | HOUSING | |
| 4. | 9T-8096 | [1] | RACE | |
| 5. | 6V-8797 | [1] | CUP-ROLLER BEARING | |
| 6V-8796 | [1] | CONE-ROLLER BEARING | ||
| 6. | 6V-7951 | [1] | DOWEL | |
| 7. | 9T-7708 | [2] | PLUG | |
| 8. | 9T-8104 | [1] | SHAFT | |
| 9. | 9T-8105 | [1] | SUPPORT | |
| 10. | 9T-5039 | [1] | PLUG | |
| 11. | 9T-8106 | [1] | SWASHPLATE | |
| 12. | 9T-7731 | [9] | PISTON AS | |
| 13. | 9T-7730 | [1] | PLATE AS | |
| 14. | 9T-7588 | [3] | BEARING | |
| 15. | 9T-7729 | [1] | BARREL AS | |
| 16. | 9T-7714 | [1] | SPACER | |
| 17. | 9T-7728 | [1] | SPRING | |
| 18. | 9T-7716 | [1] | SPACER | |
| 19. | 9T-8112 | [1] | SHIM | |
| 20. | 9T-4906 | [1] | RING-RETAINING | |
| 21. | 9T-8114 | [1] | WASHER | |
| 22. | 6Y-2737 | [1] | CUP-ROLLER BEARING | |
| 23. | 6Y-2736 | [1] | CONE-ROLLER BEARING | |
| 24. | 9T-7732 B | [1] | SHIM (.5MM THK) | |
| 9T-7733 B | [1] | SHIM (.7MM THK) | ||
| 9T-7734 B | [1] | SHIM (.8MM THK) | ||
| 9T-7735 B | [1] | SHIM (.6MM THK) | ||
| 25. | 9T-7736 | [1] | PIN | |
| 26. | 9T-7727 | [1] | PLATE | |
| 27. | 8T-4231 | [1] | DOWEL | |
| 28. | 9T-7701 | [1] | PLUG | |
| 29. | 9T-7725 | [1] | PISTON AS | |
| 30. | 9T-7724 | [1] | RING | |
| 31. | 9T-7702 | [1] | SPRING | |
| 32. | 9T-8108 | [1] | HEAD GP-PUMP | |
| 33. | 9T-7711 M | [8] | PLUG-PIPE | |
| 34. | 9X-2403 M | [2] | SETSCREW-HEX SOCKET | |
| 35. | 9T-7720 M | [2] | NUT | |
| 36. | 2Y-6458 | [1] | GASKET | |
| 37. | 2H-3855 | [4] | BOLT | |
| 38. | 9T-7719 | [1] | COVER | |
| 39. | 9S-8006 | [2] | PLUG-O-RING | |
| 2M-9780 | [2] | SEAL-O-RING | ||
| 40. | 8C-8729 M | [1] | BOLT-SOCKET HEAD | |
| 41. | 7X-2436 M | [8] | BOLT-HEX HEAD | |
| 42. | 5P-8245 | [8] | WASHER | |
| 43. | 6V-8149 M | [8] | NUT | |
| 44. | 6V-8399 | [1] | SEAL-O-RING | |
| 45. | 9T-7722 | [1] | RING | |
| 46. | 9T-8442 | [1] | PISTON AS | |
| 47. | 9T-7718 | [1] | ROD AS | |
| 48. | 9T-7717 | [1] | LEVER | |
| 49. | 9T-7715 | [1] | SUPPORT | |
| 50. | 7X-2438 | [1] | DOWEL | |
| 51. | 9T-7713 | [1] | BUSHING | |
| 52. | 8T-9524 | [1] | SEAL-O-RING | |
| 53. | 6V-5193 M | [4] | BOLT-SOCKET HEAD | |
| 54. | 9S-4191 | [1] | PLUG-O-RING | |
| 3J-1907 | [1] | SEAL | ||
| 55. | 8T-6628 | [1] | DOWEL | |
| 56. | 4D-5256 | [1] | SEAL-O-RING | |
| 57. | 8T-9528 | [1] | SEAL-O-RING | |
| 58. | 9T-7712 | [1] | HOUSING | |
| 59. | 9T-7709 | [2] | RETAINER | |
| 60. | 9T-7710 | [1] | SPRING | |
| 61. | 9T-9523 | [1] | PLUG AS | |
| 62. | 9T-4817 M | [1] | NUT | |
| 63. | 9T-7700 | [1] | PIN | |
| 64. | 9T-7706 | [1] | STEM | |
| 65. | 9T-7705 | [1] | PIN | |
| 6V-6580 | [1] | SEAL-O-RING | ||
| 66. | 9T-7704 | [1] | PLUG | |
| 67. | 9T-7703 | [2] | RETAINER |
