| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 120G PUMP |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 120G PUMP | Product Name: | 8J6730 PUMP GP-PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA8J6730 8J-6730 8J6730 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
8J6730 PUMP GP-PISTON Caterpillar parts 120G PUMP
Product Description
CA8J6730
8J-6730
8J6730
MOTOR GRADER 120G Caterpillar
Caterpillar SIS
120G MOTOR GRADER 82V00001-00667 (MACHINE)

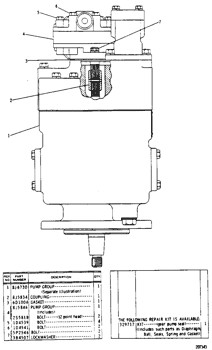

8J6731 SLIPPER AND GEAR PISTON PUMP GROUP
Part of 9D950 Pump and Mounting Group shown on Page 169
8J6730 Slipper Pump parts are shown on Pages 170 and 171
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 8J-6730 Y | [1] | PUMP GROUP | |
| (Separate Illustration) | ||||
| 2. | 8J-5834 | [1] | COUPLING | |
| 3. | 6D-1004 | [1] | GASKET | |
| 4. | 8J-5846 | [1] | PUMP GROUP | |
| (Includes) | ||||
| 2S-5818 | [2] | BOLT (12 point head) | ||
| 5. | 1D-4539 | [4] | BOLT | |
| 6. | 1D-4541 | [2] | BOLT | |
| 7. | 5P-2546 | [2] | BOLT | |
| 3B-4507 | [2] | LOCKWASHER | ||
| THE FOLLOWING REPAIR KIT IS AVAILABLE: | ||||
| 032-9717 | [1] | KIT (gear pump seal) | ||
OME
| 1W5104 Ring Piston | Engine | 1W-5104 | Ring | 7N1365 Piston Body(See 7N1366T) | Cylinder Liner | 7N-1365 | 1W5104 Ring Piston Engine 1W-5104 Ring 7N1365 Piston Body(See 7N1366T) Cylinder Liner 7N-1365 |
| 1W6759 Piston Body | Engine | 1W-6759 | Ring | 7N7436 Ring Kit(1 Piston) Compr | Cylinder Liner | 7N-7436 | 1W-6759 Engine 7N7436 Ring Kit(1 Piston) Compr Cylinder Liner 1W6759 Piston Body Ring 7N-7436 |
| 2093258 Pump Gp Ps | Engine | 209-3258 | Ring | 8J2037 Piston A Pump Piston 215 | Cylinder Liner | 8J-2037 | 8J-2037 Ring 8J2037 Piston A Pump Piston 215 Engine 209-3258 Cylinder Liner 2093258 Pump Gp Ps |
| 2246369 Pump Gp Ps | Engine | 224-6369 | Ring | 8N1606 Piston 5.4 (See 9Y4004T) | Cylinder Liner | 8N-1606 | 8N1606 Piston 5.4 (See 9Y4004T) Cylinder Liner 224-6369 Engine 8N-1606 Ring 2246369 Pump Gp Ps |
| 2257010 Ring Pisto | Engine | 225-7010 | Ring | 8S4636 Piston Kit(See Tak5250T) | Cylinder Liner | 8S-4636 | 2257010 Ring Pisto Engine 225-7010 Ring 8S4636 Piston Kit(See Tak5250T) Cylinder Liner 8S-4636 |
