| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 350 PISTON |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 350 PISTON | Product Name: | 7I8178 PISTON AS Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA7I8178 7I-8178 7I8178 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
7I8178 PISTON AS Caterpillar parts 350 PISTON
Product Description
CA7I8178
7I-8178
7I8178
EXCAVATOR 350 Caterpillar
350 & 350 L Excavators 2ZL00001-UP (MACHINE) POWERED BY 3306 Engine

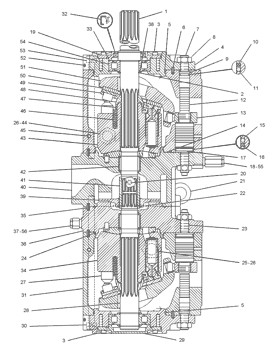

107-6478 PUMP GP-PISTON -FRONT, REAR
S/N 2ZL1-UP; 3ML1-UP
PART OF 087-4750 PUMP GP-MAIN HYDRAULIC
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 7I-8143 | [1] | SHAFT-FRONT | |
| 2. | 6V-5204 | [2] | RING-RETAINING | |
| 3. | 8T-1158 M | [8] | BOLT-SOCKET HEAD (M8X1.25X20-MM) | |
| 4. | 107-6477 | [2] | SUPPORT | |
| 5. | 7I-8168 | [2] | SEAL-O-RING (169.4MM ID) | |
| 6. | 095-0882 | [5] | PIN-SPRING | |
| 7. | 7I-8174 M | [2] | SETSCREW | |
| 8. | 8T-4131 M | [4] | NUT (M20X2.5-THD) | |
| 9. | 7I-8167 | [2] | STOP | |
| 10. | 7I-8171 | [2] | RING-BACKUP | |
| 11. | 109-1294 | [2] | SEAL-O-RING | |
| 12. | 7I-8165 | [2] | PISTON-SERVO | |
| 13. | 7I-8182 | [2] | PIN AS | |
| 14. | 095-1575 | [15] | SEAL-O-RING | |
| 15. | 109-1296 | [2] | SEAL-O-RING | |
| 16. | 7I-8172 | [2] | RING-BACKUP | |
| 17. | 7I-8166 | [2] | STOPPER | |
| 18. | 3J-1907 | [2] | SEAL-O-RING | |
| 9S-4191 | [2] | PLUG (9/16-18-THD) | ||
| 19. | 7I-8156 | [1] | COVER | |
| 20. | 096-1445 | [5] | PLUG | |
| 21. | 8T-3220 M | [2] | EYEBOLT | |
| 22. | 095-1706 | [1] | SEAL-O-RING | |
| 23. | 7I-8175 | [2] | SETSCREW | |
| 24. | 7I-8169 | [3] | SEAL-O-RING | |
| 25. | 7I-8177 | [2] | ADAPTER | |
| 26. | 095-1592 | [4] | SEAL-O-RING | |
| 27. | 7I-8178 | [2] | PISTON AS | |
| 28. | 7I-8144 | [1] | SHAFT-REAR | |
| 29. | 7I-8157 | [1] | COVER | |
| 30. | 102-2564 M | [4] | BOLT-SOCKET HEAD | |
| 31. | 7I-8158 | [2] | BODY-CASING | |
| 32. | 7I-8170 | [1] | SEAL-LIP TYPE | |
| 33. | 095-1715 | [2] | SEAL-O-RING | |
| 34. | 7I-8180 | [1] | BARREL AS | |
| 35. | 5I-4168 | [2] | PIN | |
| 36. | 7I-8160 | [1] | COVER-VALVE | |
| 37. | 095-1579 | [2] | SEAL-O-RING | |
| 38. | 7I-8148 | [3] | SPACER-BEARING | |
| 39. | 7I-8149 | [1] | IMPELLER | |
| 40. | 7I-8159 | [1] | COVER-VALVE | |
| 41. | 7I-8145 | [1] | COUPLING | |
| 42. | 7I-8147 | [2] | BEARING AS-NEEDLE | |
| 43. | 7I-8179 | [1] | BARREL AS | |
| 44. | 7I-8163 | [2] | PLUG | |
| 45. | 7I-8164 | [4] | ORIFICE | |
| 46. | 7I-8152 | [18] | SPRING-CYLINDER | |
| 47. | 7I-8153 | [2] | SPACER | |
| 48. | 099-8141 | [2] | BUSHING | |
| 49. | 099-8144 | [2] | PLATE | |
| 50. | 7I-8154 | [2] | PLATE | |
| 51. | 107-6476 | [2] | SWASHPLATE AS | |
| 52. | 8T-6759 | [28] | PLUG-PIPE | |
| 53. | 102-2563 M | [4] | BOLT-SOCKET HEAD | |
| 54. | 7I-8146 | [2] | BEARING-ROLLER | |
| 55. | 107-6585 | [1] | ADAPTER | |
| 56. | 5I-8784 | [1] | ADAPTER |
OME
| 1915611 Motor Gp P | Engine | 191-5611 | Ring | 2382712 Skirt Pist New Take Off | Cylinder Liner | 238-2712 | 2382712 Skirt Pist New Take Off Cylinder Liner 191-5611 Engine 238-2712 Ring 1915611 Motor Gp P |
| 1979297 Crown As P | Engine | 197-9297 | Ring | 2997612 Ring Piston Compression | Cylinder Liner | 299-7612 | 1979297 Crown As P Engine 197-9297 Ring 2997612 Ring Piston Compression Cylinder Liner 299-7612 |
| 1979327 Pin Piston | Engine | 197-9327 | Ring | 2W8414 Body A.020 1W2064 9N5630 | Cylinder Liner | 2W-8414 | 197-9327 Engine 2W8414 Body A.020 1W2064 9N5630 Cylinder Liner 1979327 Pin Piston Ring 2W-8414 |
| 1979371 Pin Piston | Engine | 197-9371 | Ring | 6T3009 Piston (Rotating Clutch) | Cylinder Liner | 6T-3009 | 6T-3009 Ring 6T3009 Piston (Rotating Clutch) Engine 197-9371 Cylinder Liner 1979371 Pin Piston |
| 1P8474 Ring Piston | Engine | 1P-8474 | Ring | 7E8929 Piston 5.4 (See 9Y4004T) | Cylinder Liner | 7E-8929 | 7E8929 Piston 5.4 (See 9Y4004T) Cylinder Liner 1P-8474 Engine 7E-8929 Ring 1P8474 Ring Piston |
