| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 587R, D8N, D8R, D8R II PISTON |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 587R, D8N, D8R, D8R II PISTON | Product Name: | 1308412 PISTON-CLUTCH Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA1308412 130-8412 1308412 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
1308412 PISTON-CLUTCH Caterpillar parts 587R, D8N, D8R, D8R II PISTON
Product Description
CA1308412
130-8412
1308412
PIPELAYER 587R
TRACK-TYPE TRACTOR D8N D8R D8R II Caterpillar

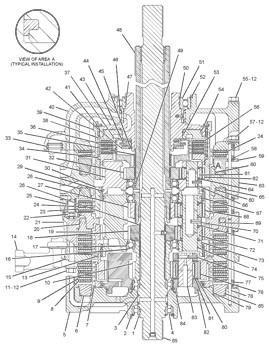

587R PIPELAYER BXL00001-UP (MACHINE) POWERED BY 3406C Engine
105-2488 PLANETARY GP-TRANSMISSION
S/N TDK1-602
PART OF 249-5307 TRANSMISSION AR
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 8M-5010 | [2] | SEAL-O-RING | |
| 2. | 068-8093 | [2] | RING-RETAINING | |
| 3. | 3T-4377 | [2] | SEAL-RING | |
| 4. | 8H-5352 | [2] | BALL BEARING | |
| 5. | 111-7470 | [1] | HOUSING AS | |
| 3F-5022 | [1] | PLUG-CUP | ||
| 6. | 9W-6186 | [1] | PISTON-CLUTCH | |
| 7. | 6Y-4771 | [1] | COUPLING | |
| 8. | 9P-7390 | [10] | DISC AS-FRICTION | |
| 9. | 8P-2051 | [8] | PLATE-CLUTCH | |
| 10. | 7T-9272 | [1] | GEAR-SUN (34-TEETH) | |
| 11. | 030-8538 | [1] | BOLT (1/2-13X1.25-IN) | |
| 12. | 5P-8245 | [11] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 13. | 7T-6580 | [1] | GEAR-RING (82-TEETH) | |
| 14. | 9W-0645 | [1] | TUBE AS | |
| 15. | 6Y-4834 | [1] | PLATE AS | |
| 3S-2708 | [1] | PIN-SPRING | ||
| 8T-1445 | [2] | DOWEL | ||
| 16. | 6V-0473 | [3] | RING-RETAINING | |
| 17. | 7T-8816 | [3] | BALL BEARING | |
| 18. | 6Y-0061 | [1] | GEAR-SUN (42-TEETH) | |
| 19. | 6I-9786 | [1] | GEAR-RING (93-TEETH) | |
| 20. | 130-8412 | [1] | PISTON-CLUTCH | |
| 21. | 9W-2997 | [1] | HOUSING-CLUTCH | |
| 22. | 1A-5183 | [2] | BOLT (3/8-16X4.75-IN) | |
| 23. | 6I-8500 | [3] | PLATE-CLUTCH | |
| 24. | 328-4374 | [5] | DISC-FRICTION | |
| 25. | 9M-4355 | [10] | DAMPER-BOLT | |
| 26. | 061-6711 | [2] | RING-RETAINING | |
| 27. | 9P-8626 | [1] | GEAR-SUN (42-TEETH) | |
| 28. | 8P-9507 | [1] | PISTON-CLUTCH | |
| 29. | 144-4284 | [3] | RING-LOCK | |
| 30. | 138-3759 | [1] | GEAR-RING (93-TEETH) | |
| 31. | 6I-9785 | [1] | CARRIER-PLANETARY | |
| 32. | 7T-9369 | [1] | GEAR-SUN (50-TEETH) | |
| 33. | 8M-5266 | [1] | SEAL-O-RING | |
| 34. | 346-2033 | [1] | PLATE-REACTION | |
| 35. | 5P-5296 | [2] | RING-RETAINING | |
| 36. | 8P-1964 | [3] | PLATE-CLUTCH | |
| 37. | 9G-0290 | [1] | HUB-CLUTCH | |
| 38. | 7G-7724 | [1] | PISTON-CLUTCH | |
| 39. | 9W-8270 | [1] | GEAR-RING (90-TEETH) | |
| 40. | 144-7878 | [1] | MANIFOLD | |
| 41. | 5P-8194 | [1] | RING-RETAINING | |
| 42. | 9G-8020 | [1] | PLATE-RETAINER | |
| 43. | 105-8183 | [1] | HOUSING AS | |
| 6B-6863 | [1] | PIN-SPRING | ||
| 6P-7704 | [1] | CARRIER-RING | ||
| 44. | 7G-2343 | [3] | SPRING-DISC | |
| 45. | 6V-2478 | [1] | RING-RETAINING | |
| 46. | 7G-2830 | [2] | RING-SEAL | |
| 47. | 8M-5255 | [1] | SEAL-O-RING | |
| 48. | 234-9994 | [1] | SHAFT AS-OUTPUT | |
| 3T-8729 | [1] | BUSHING | ||
| 9G-6744 | [1] | BUSHING | ||
| 49. | 5M-3038 | [2] | SEAL-O-RING | |
| 50. | 5P-5297 | [1] | RING-RETAINING (EXTERNAL) | |
| 51. | 5P-5045 | [1] | BALL BEARING | |
| 52. | 1L-7388 | [1] | RING-RETAINING | |
| 53. | 8D-9739 | [1] | SEAL-RING | |
| 54. | 8P-2023 | [1] | RING-SEAL | |
| 55. | 1M-8657 | [2] | BOLT (1/2-13X15.69-IN) | |
| 56. | 328-4375 | [4] | DISC-FRICTION | |
| 57. | 4M-2442 | [8] | BOLT (1/2-13X12.32-IN) | |
| 58. | 4M-9592 | [20] | SPRING | |
| 59. | 8P-1892 | [1] | PISTON-CLUTCH | |
| 60. | 8P-2019 | [2] | RING-SEAL | |
| 61. | 5P-3930 | [4] | BEARING AS-ROLLER | |
| 62. | 8P-1916 | [4] | GEAR-PLANETARY (20-TEETH) | |
| 63. | 117-7826 | [1] | HOUSING AS-CLUTCH | |
| 1A-2223 | [4] | DOWEL | ||
| 64. | 8E-8299 | [8] | DISC-THRUST | |
| 65. | 8P-2022 | [4] | RING-SEAL | |
| 66. | 9G-0289 | [4] | SHAFT-PLANETARY | |
| 67. | 8P-2053 | [1] | SEAL-RING | |
| 68. | 6I-9788 | [10] | GEAR-PLANETARY (25-TEETH) | |
| 69. | 8P-9569 | [1] | RING-SEAL | |
| 70. | 112-4511 | [5] | PIN-SPRING | |
| 71. | 8E-8304 | [20] | DISC-THRUST | |
| 72. | 5M-6126 | [10] | BEARING AS-ROLLER | |
| 73. | 6I-9784 | [1] | CARRIER-PLANETARY | |
| 74. | 112-5585 | [5] | SHAFT-PLANETARY | |
| 75. | 3S-2708 | [8] | PIN-SPRING | |
| 76. | 7T-6578 | [4] | GEAR-PLANETARY (24-TEETH) | |
| 77. | 7H-7658 | [10] | SPRING | |
| 78. | 3K-2511 | [10] | DOWEL-REACTION | |
| 79. | 6T-0838 | [1] | RING-SEAL | |
| 80. | 8E-8303 | [8] | DISC-THRUST | |
| 81. | 6Y-2811 | [4] | BEARING AS-ROLLER | |
| 82. | 131-4091 | [1] | SEAL-RING | |
| 83. | 7T-6581 | [4] | SHAFT-PLANETARY | |
| 84. | 6Y-4846 | [1] | CARRIER-PLANETARY | |
| 85. | 231-8855 | [1] | SHAFT AS-INPUT | |
| 156-4406 | [1] | PLUG-PIPE | ||
| 6V-1720 F | [1] | PLATE-SERIAL NUMBER (TRANSMISSION) | ||
