| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | G3304, G3304B, G3306, G3306B |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | G3304, G3304B, G3306, G3306B | Product Name: | 4P2654 BODY AS-PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA4P2654 4P-2654 4P2654 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
2131152 PISTON Caterpillar parts 824G, 824G II, 824H, 824K, 825G II, 825H, 826G II, 826H, 980G, 980G II, 980H, 980K, 980K HLG
Product Description
CA2131152
213-1152
2131152
LANDFILL COMPACTOR 826G II 826H
SOIL COMPACTOR 825G II 825H
WHEEL DOZER 824G 824G II 824H 824K
WHEEL LOADER 980G 980G II 980H 980K 980K HLG Caterpillar
824K Wheel Dozer 2T200001-UP (MACHINE) POWERED BY C15 Engine

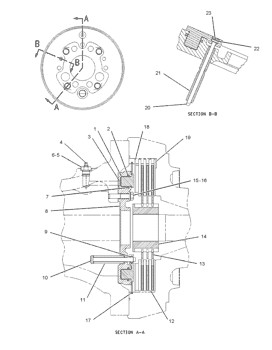

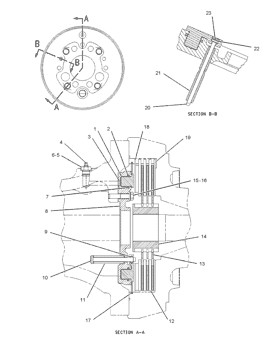

208-5972 BRAKE GP-SERVICE
S/N 2T21-UP
PART OF 453-7244 AXLE AR-FIXED, 229-8208, 368-7978 AXLE AR-OSCILLATING
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 213-1152 | [1] | PISTON | |
| 2. | 151-6251 | [1] | SEAL-D-RING | |
| 3. | 5P-8119 | [1] | SEAL-O-RING | |
| 4. | 9F-2167 | [1] | SCREW-PURGE (3/8-24X1.164-IN) | |
| 5. | 110-2446 | [1] | ADAPTER | |
| 6. | 3K-0360 | [1] | SEAL-O-RING | |
| 7. | 151-6250 | [1] | SEAL-D-RING | |
| 8. | 193-1152 | [1] | HOUSING | |
| 9. | 6M-9155 | [4] | PIN | |
| 10. | 7V-8346 | [4] | SPRING-GUIDE | |
| 11. | 8V-3609 | [4] | SPRING-RETRACTOR | |
| 12. | 118-6606 | [3] | PLATE-OUTER | |
| 13. | 201-0737 | [3] | DISC-FRICTION (EXTENDED LIFE) | |
| 14. | 105-8724 | [1] | HUB | |
| 15. | 6V-8150 M | [3] | BOLT (M12X1.75X60-MM) | |
| 16. | 3H-7654 | [3] | WASHER-HARD (13.5X22.5X3-MM THK) | |
| 17. | 9M-2076 | [1] | RING-SNAP | |
| 18. | 337-3942 | [1] | PLATE-DAMPER | |
| 19. | 195-3722 | [1] | PLATE-OUTER | |
| 20. | 173-0554 | [1] | PIN (BRAKE DISC WEAR INDICATOR) | |
| 21. | 173-0555 | [1] | DOWEL-HOLLOW | |
| 22. | 8T-4224 | [1] | WASHER-HARD (8.8X16X2-MM THK) | |
| 23. | 096-6901 | [1] | RING-RETAINING |
OEM
|
2171573 Ring Kit |
Engine | 217-1573 | Ring | 5E3014 Retainer Piston Pin | Cylinder Liner | 5E-3014 |
| 2212305 Crown As | Engine | 221-2305 | Ring | 5M1990 Pilot Clutch Piston | Cylinder Liner | 5M-1990 |
| 2268204 Ring Set | Engine | 226-8204 | Ring | 6E465 Seal Assy Hyd Piston | Cylinder Liner | 6E-465 |
| 2W1711 Piston Gr | Engine | 2W-1711 | Ring | 7C0563 Rod Assem. (Piston) | Cylinder Liner | 7C-0563 |
| 2W4841 Piston Gp | Engine | 2W-4841 | Ring | 7R6541 Retainer Piston Pin | Cylinder Liner | 7R-6541 |
| 3145006 Piston A | Engine | 314-5006 | Ring | 8N2275T Bushing Piston Pin | Cylinder Liner | 8N-2275 |
| 3W8158 Piston As | Engine | 3W-8158 | Ring | 8N8064 Retainer Piston Pin | Cylinder Liner | 8N-8064 |
| 3W8160 Piston As | Engine | 3W-8160 | Ring | Rs9Y7212 4 Ring Set Piston | Cylinder Liner | 9Y-7212 |
| 4I6448 Piston As | Engine | 4I-6448 | Ring | Tak9372 Piston Kit (See T) | Cylinder Liner | Tak-9372 |
| 4I8834 Piston As | Engine | 4I-8834 | Ring | 10R7727 Piston 3066T/0.25Mm | Cylinder Liner | 10R-7727 |
| 4P3953 Piston As | Engine | 4P-3953 | Ring | 1290359 Piston Body W/O Pin | Cylinder Liner | 129-359 |
| 4T3272 Piston As | Engine | 4T-3272 | Ring | 1T1426 Piston Lockup Clutch | Cylinder Liner | 1T-1426 |
| 4W5819 Piston As | Engine | 4W-5819 | Ring | 1W8900 Ring Top Piston 3400 | Cylinder Liner | 1W-8900 |
