| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 320B SEAL |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 320B SEAL | Product Name: | 1233135 SEAL AS-PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA1233135 123-3135 1233135 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
1233135 SEAL AS-PISTON Caterpillar parts 320B SEAL
Product Description
CA1233135
123-3135
1233135
320B & 320B L Excavators 4XW00001-UP (MACHINE) POWERED BY 3066 Engine

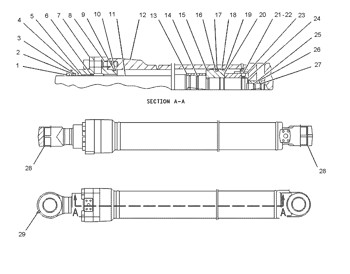

118-3953 CYLINDER & SEAL GP-STICK
S/N 4XW1-UP; 5GW1-UP
PART OF 118-3952 CYLINDER & LINES GP-STICK
AN ATTACHMENT
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 133-6904 | [1] | SEAL-LIP TYPE | |
| 2. | 121-1372 | [1] | RING-BACKUP | |
| 3. | 121-1371 | [1] | SEAL-U-CUP | |
| 4. | 4I-3626 | [1] | SEAL-BUFFER | |
| 5. | 096-5625 | [1] | BUSHING | |
| 6. | 094-1931 | [1] | RING-RETAINING | |
| 7. | 126-1941 | [1] | HEAD | |
| 8. | 4I-3628 M | [12] | BOLT-SOCKET HEAD (M18X2.5X80-MM) | |
| 9. | 107-6258 | [1] | RING | |
| 10. | 095-1721 | [1] | SEAL-O-RING | |
| 11. | 119-5225 | [1] | ROD AS | |
| 119-5214 | [1] | BUSHING | ||
| 12. | 126-1945 | [1] | CYLINDER AS | |
| 119-5214 | [1] | BUSHING | ||
| 13. | 4I-8869 | [1] | STOP | |
| 14. | 126-1876 | [1] | RING-SEAL | |
| 15. | 105-2593 | [1] | PISTON | |
| 16. | 107-6262 | [2] | RING | |
| 17. | 123-3135 | [1] | SEAL AS-PISTON | |
| 18. | 126-1877 | [2] | RING | |
| 19. | 096-1571 | [2] | RING | |
| 20. | 096-5741 B | [1] | SHIM (0.3-MM THK) | |
| 21. | 096-6210 M | [1] | SETSCREW-SOCKET (M14X2X14-MM) | |
| 22. | 096-6211 | [1] | BALL | |
| 23. | 119-5211 | [1] | LOCKNUT-SPECIAL | |
| 24. | 096-4461 | [1] | RING-RETAINING | |
| 25. | 126-1879 | [1] | RING-SEAL | |
| 26. | 126-1878 | [1] | STOP | |
| 27. | 6I-6971 | [2] | RING-RETAINING | |
| 28. | 096-4411 | [4] | SEAL-LIP TYPE | |
| 29. | 3B-8489 | [1] | FITTING-GREASE (1/8-27 PTF) |
