| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 426 PUMP |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 426 PUMP | Product Name: | 6E0838 PUMP GP-PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA6E0838 6E-0838 6E0838 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
6E0838 PUMP GP-PISTON Caterpillar parts 426 PUMP
Product Description
CA6E0838
6E-0838
6E0838
BACKHOE LOADER 426 Caterpillar
Caterpillar SIS

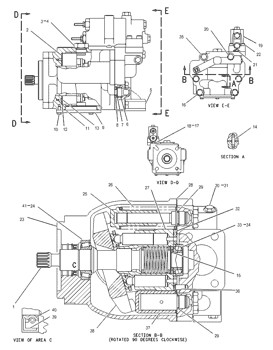

6E0838 PUMP GP-PISTON
6E6569-PAGE 351.03, 6E6583-PAGE 351.03, 1022068-PAGE 351.04
FIELD REPLACEMENT FOR 9T4833 PUMP-PISTON
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 108-0390 | [1] | SHAFT-PUMP | |
| 2. | 6E-6573 | [1] | BEARING | |
| 3. | 6E-4224 | [1] | PLUG-SWASHPLATE | |
| 4. | 033-6036 | [1] | SEAL-O-RING | |
| 5. | 109-4198 | [1] | HEAD-PUMP | |
| 6. | 9T-1699 | [1] | SPRING | |
| 7. | 9T-1710 | [1] | POPPET | |
| 8. | 9T-1636 | [1] | SEAT | |
| 9. | 6E-6575 | [1] | COVER | |
| 10. | 6V-8837 M | [3] | BOLT (M6X1X16MM) | |
| 11. | 1P-8362 | [1] | SEAL-O-RING | |
| 12. | 6E-6576 | [1] | BEARING | |
| 13. | 3E-4302 M | [2] | SCREW-FLAT HEAD | |
| 14. | 095-0888 | [2] | PIN-SPRING | |
| 15. | 9T-3038 B | [1] | KIT-SHAFT SHIM | |
| (INCL'S 17 SHIMS) | ||||
| 16. | 6V-5684 M | [4] | BOLT (M12X1.75X45MM) | |
| 17. | 9S-4185 | [1] | PLUG-O-RING (3/4 X 16 THD) | |
| 18. | 3K-0360 | [1] | SEAL-O-RING (16.36MM ID) | |
| 19. | 102-2068 Y | [1] | VALVE GP-PRESS & FLOW CMPNSTR | |
| 20. | 6V-8336 M | [1] | BOLT (M12X1.75X70MM) | |
| 21. | 8T-5039 | [3] | SEAL-O-RING | |
| 22. | 6V-8337 M | [4] | BOLT-SOCKET HEAD | |
| 23. | 108-0389 | [1] | HOUSING-PUMP | |
| 24. | 005-0469 | [1] | CUP-ROLLER BEARING | |
| 25. | 6E-6578 | [1] | KIT-PISTON BIAS | |
| 26. | 6E-6579 | [1] | SPRING-BIAS | |
| 27. | 6E-6569 Y | [1] | ROTATING GP-PUMP | |
| 28. | 6E-6580 | [1] | GASKET | |
| 29. | 6V-3922 | [2] | SEAL-O-RING (18.72MM ID) | |
| 30. | 3E-7417 | [2] | PLUG | |
| 31. | 8T-7876 | [2] | SEAL-O-RING | |
| 32. | 109-5144 | [1] | PLATE-PORT | |
| 33. | 111-6800 | [1] | CONE-ROLLER BEARING | |
| 34. | 111-6801 | [1] | CUP-ROLLER BEARING | |
| 35. | 8T-0372 M | [1] | BOLT (M12X1.75X90MM) | |
| 36. | 9T-1652 | [1] | PIN | |
| 37. | 6E-6582 | [1] | KIT-PISTON CONTROL | |
| 38. | 6E-6583 Y | [1] | SWASHPLATE GP | |
| 39. | 008-3214 | [1] | RING-RETAINING | |
| 40. | 3E-6776 | [1] | SEAL-LIP | |
| 41. | 005-0471 | [1] | CONE-BEARING | |
