| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 225, 227 PUMP |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 225, 227 PUMP | Product Name: | 4T7426 PUMP GP-PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA4T7426 4T-7426 4T7426 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
4T7426 PUMP GP-PISTON Caterpillar parts 225, 227 PUMP
Product Description
CA4T7426
4T-7426
4T7426
EXCAVATOR 225
LOGGER 227 Caterpillar
Caterpillar SIS

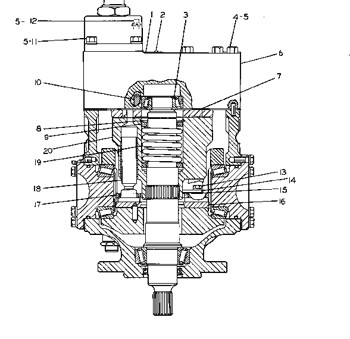

4T7426 PISTON SLIPPER PUMP GROUP - 2 REQUIRED - PART 1 OF 2
Serial No. 76U3717-Up.
3G3286-Page 148
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 2P-9703 | [1] | PLATE (CAUTION) | |
| 2. | 4B-4158 | [4] | SCREW | |
| 3. | 8J-0423 | [1] | CONE | |
| 4. | 2J-5907 | [6] | BOLT | |
| 5. | 8S-1750 | [4] | WASHER | |
| 6. | 3G-3286 Y | [1] | HEAD GROUP | |
| 8J-0499 K | [1] | GASKET | ||
| 7. | 3G-2859 R | [1] | PLATE | |
| 8. | 8J-0484 | [1] | RING | |
| 9. | 8J-0482 | [2] | SPACER | |
| 10. | 5B-5821 | [2] | DOWEL | |
| 11. | 5B-5059 | [2] | BOLT | |
| 12. | 5P-7498 | [2] | BOLT | |
| 13. | 031-0216 | [8] | BOLT | |
| 5P-0537 | [8] | WASHER | ||
| 14. | 3G-6910 | [2] | BEARING | |
| 15. | 8J-2068 B | [6] | SHIM .06MM(.002IN.)THICK | |
| 8J-2069 B | [4] | SHIM .13MM(.005IN.)THICK | ||
| 16. | 3G-9671 | [1] | PLATE | |
| 17. | 4T-7024 | [1] | PLATE | |
| 18. | 1U-2738 R | [9] | PISTON ASSEM. | |
| 19. | 8J-0483 | [1] | SPRING | |
| 20. | 9J-2417 R | [1] | BARREL ASSEM. | |
| THE FOLLOWING REPAIR KIT IS AVAILABLE: | ||||
| 3G-1688 | [1] | KIT (REPAIR) | ||
