| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 824G, 825G, 826G, 834B, 834G, 834H, 834K, 836, 836G, 836H, 836K, 980G, 986H, 988F II, 988G, 988H, 988K PISTON |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 824G, 825G, 826G, 834B, 834G, 834H, 834K, 836, 836G, 836H, 836K, 980G, 986H, 988F II, 988G, 988H, 988K PISTON | Product Name: | 1079172 PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA1079172 107-9172 1079172 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
1079172 PISTON Caterpillar parts 824G, 825G, 826G, 834B, 834G, 834H, 834K, 836, 836G, 836H, 836K, 980G, 986H, 988F II, 988G, 988H, 988K PISTON
Product Description
CA1079172
107-9172
1079172
LANDFILL COMPACTOR 826G 836 836G 836H 836K
SOIL COMPACTOR 825G
WHEEL DOZER 824G 834B 834G 834H 834K
WHEEL LOADER 980G 986H 988F II 988G 988H 988K Caterpillar
836K Landfill Compactor T6X00001-UP (MACHINE) POWERED BY C27 Engine

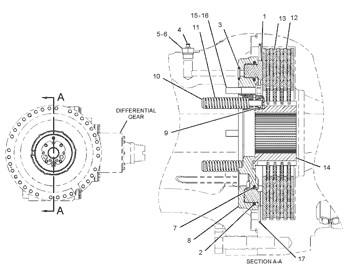

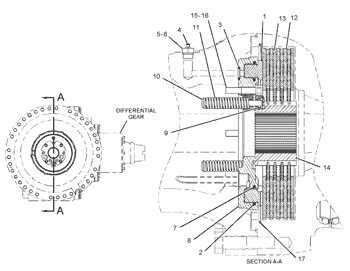

161-9275 BRAKE GP-SERVICE
S/N T6X1-UP
PART OF 148-2345 AXLE AR-FIXED
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 107-9172 | [1] | PISTON | |
| 2. | 524-4100 | [1] | SEAL-D-RING | |
| 3. | 5P-8119 | [1] | SEAL-O-RING | |
| 4. | 9F-2167 | [1] | SCREW-PURGE (3/8-24X1.164-IN) | |
| 5. | 110-2446 | [1] | ADAPTER | |
| 6. | 3K-0360 | [1] | SEAL-O-RING | |
| 7. | 524-4099 | [1] | SEAL-D-RING | |
| 8. | 134-0039 | [1] | HOUSING | |
| 9. | 6M-9155 | [4] | PIN | |
| 10. | 7V-8346 | [4] | SPRING-GUIDE | |
| 11. | 8V-3609 | [4] | SPRING-RETRACTOR | |
| 12. | 118-6606 | [5] | PLATE-OUTER | |
| 13. | 201-0737 | [4] | DISC-FRICTION (EXTENDED LIFE) | |
| 14. | 330-4035 C | [1] | HUB | |
| 15. | 6V-8150 M | [3] | BOLT (M12X1.75X60-MM) | |
| 16. | 3H-7654 | [3] | WASHER-HARD (13.5X22.5X3-MM THK) | |
| 17. | 9M-2076 | [1] | RING-SNAP |
OME
| 7I8178 Piston As | Engine | 7I-8178 | Ring | 4N5692 Oil Ring Piston 3400 | Cylinder Liner | 4N-5692 | 7I-8178 Engine 4N5692 Oil Ring Piston 3400 Cylinder Liner 7I8178 Piston As Ring 4N-5692 |
| 9T8229 Piston As | Engine | 9T-8229 | Ring | 5J5559 Seal Assembly Piston | Cylinder Liner | 5J-5559 | 5J-5559 Ring 5J5559 Seal Assembly Piston Engine 9T-8229 Cylinder Liner 9T8229 Piston As |
| 9T8229 Piston As | Engine | 9T-8229 | Ring | 5J7013 Seal Assy Hyd Piston | Cylinder Liner | 5J-7013 | 5J7013 Seal Assy Hyd Piston Cylinder Liner 9T-8229 Engine 5J-7013 Ring 9T8229 Piston As |
| 9V3222 Piston As | Engine | 9V-3222 | Ring | 5J7019 Seal Assy Hyd Piston | Cylinder Liner | 5J-7019 | 9V3222 Piston As Engine 9V-3222 Ring 5J7019 Seal Assy Hyd Piston Cylinder Liner 5J-7019 |
| 9V3222 Piston As | Engine | 9V-3222 | Ring | 7E7310 Piston (See 9Y7212T) | Cylinder Liner | 7E-7310 | 9V-3222 Engine 7E7310 Piston (See 9Y7212T) Cylinder Liner 9V3222 Piston As Ring 7E-7310 |
