| Place of Origin: | China |
|---|---|
| Brand Name: | Caterpillar |
| Certification: | 68555435543 |
| Model Number: | 578, D6H, D7H PISTON |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiation |
| Packaging Details: | box |
| Delivery Time: | 3-5 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 |
| Model OEM: | 578, D6H, D7H PISTON | Product Name: | 6T0239 PISTON Caterpillar Parts |
|---|---|---|---|
| Cross Code: | CA6T0239 6T-0239 6T0239 | Other Name: | Piston Kit |
| Sort: | Cylinder Liner | Application: | Engine Parts |
| Applicable: | Excavator Parts | Weight: | XX Kg. |
6T0239 PISTON Caterpillar parts 578, D6H, D7H PISTON
Product Description
CA6T0239
6T-0239
6T0239
PIPELAYER 578
TRACK-TYPE TRACTOR D6H D7H Caterpillar
578 Pipelayer 8HB00001-UP (MACHINE) POWERED BY 3406 Engine
6T-1862 CLUTCH & BRAKE GP-STEERING
S/N 8HB1-435
PART OF 9P-7400 POWER TRAIN AR
Information

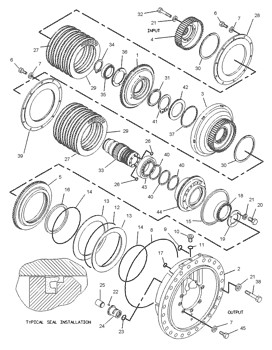

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6T-0239 | [1] | PISTON | |
| 2. | 6T-3061 | [1] | HOUSING-BRAKE | |
| 3. | 6T-2974 | [1] | HOUSING | |
| 4. | 6T-3081 | [1] | HUB-INPUT | |
| 5. | 7T-3578 | [1] | PISTON | |
| 6. | 0S-1585 | [20] | BOLT (1/2-13X1.5-IN) | |
| 7. | 5P-8245 | [27] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 8. | 8D-4771 | [1] | SEAL-O-RING | |
| 9. | 6F-6673 | [3] | SEAL-O-RING | |
| 10. | 9S-8005 | [3] | PLUG (3/4-16-THD) | |
| 11. | 3K-0360 | [3] | SEAL-O-RING | |
| 12. | 3T-3601 | [1] | RING-SPACER | |
| 13. | 7T-5020 | [2] | SPRING-DISC | |
| 14. | 3T-3602 | [2] | RING-SPACER | |
| 15. | 6P-5317 | [1] | RING-SEAL (EXTERNAL) | |
| 16. | 7T-1837 | [1] | RING-SEAL | |
| 17. | 8M-4438 | [2] | SEAL-O-RING | |
| 18. | 4M-5858 | [1] | BALL BEARING | |
| 19. | 6T-0247 | [1] | PLATE | |
| 20. | 1A-2029 | [4] | BOLT (3/8-16X1.125-IN) | |
| 21. | 5M-2894 | [10] | WASHER-HARD (10.2X18.5X2.5-MM THK) | |
| 22. | 6D-9953 | [1] | PIN-SPRING | |
| 23. | 6J-7836 | [1] | RING-SNAP | |
| 24. | 6T-7863 | [1] | SLEEVE | |
| 25. | 6T-7862 | [1] | SPOOL | |
| 26. | 0L-1026 | [2] | PLUG-CUP | |
| 27. | 6T-3080 | [10] | PLATE-CLUTCH & BRAKE | |
| 28. | 6T-0240 | [1] | RETAINER | |
| 29. | 6Y-9373 | [12] | DISC-FRICTION | |
| 30. | 7T-1885 | [2] | RING | |
| 31. | 6T-0257 | [1] | RING-SEAL | |
| 32. | 0L-2070 | [4] | BOLT (3/8-16X2.25-IN) | |
| 33. | 6T-2839 | [1] | HUB-OUTPUT | |
| 34. | 8F-1959 | [1] | RING-RETAINING | |
| 35. | 8S-3517 | [1] | BALL BEARING | |
| 36. | 6T-0244 | [1] | PLATE | |
| 37. | 6T-0252 | [1] | RING-SEAL | |
| 38. | 0S-1571 | [2] | BOLT (3/8-16X1.75-IN) | |
| 39. | 6Y-9468 | [1] | RETAINER AS | |
| 6T-0240 | [1] | RETAINER | ||
| 6V-0709 | [1] | PLATE-WARNING (RECOIL SPRING) | ||
| 7B-3028 | [4] | SCREW-DRIVE (NO 4X 3/16-IN) | ||
| 40. | 6T-0248 | [3] | RING-SEAL | |
| 41. | 5P-5297 | [1] | RING-RETAINING (EXTERNAL) | |
| 42. | 6T-0243 | [1] | PLATE-THRUST | |
| 43. | 4F-2129 | [1] | BALL BEARING | |
| 44. | 7T-2032 | [1] | RETAINER | |
| 45. | 0S-1587 | [7] | BOLT (1/2-13X1.75-IN) |
OME
| 1979386 Ring Piston | Engine | 197-9386 | Ring | 7E3428 Body As Piston | Cylinder Liner | 7E-3428 | 197-9386 Engine 7E3428 Body As Piston Cylinder Liner 1979386 Ring Piston Ring 7E-3428 |
| 1979392 Ring Piston | Engine | 197-9392 | Ring | 7E4729 Body As Piston | Cylinder Liner | 7E-4729 | 7E-4729 Ring 7E4729 Body As Piston Engine 197-9392 Cylinder Liner 1979392 Ring Piston |
| 1U3522 Rod A 3G5219 | Engine | 1U-3522 | Ring | 7E7297 Ring As Piston | Cylinder Liner | 7E-7297 | 7E7297 Ring As Piston Cylinder Liner 1U-3522 Engine 7E-7297 Ring 1U3522 Rod A 3G5219 |
| 1W6588 Piston G Rod | Engine | 1W-6588 | Ring | 7E7600 Body As Piston | Cylinder Liner | 7E-7600 | 1W6588 Piston G Rod Engine 1W-6588 Ring 7E7600 Body As Piston Cylinder Liner 7E-7600 |
| 2236361 Ring Piston | Engine | 223-6361 | Ring | 7E8656 Body As Piston | Cylinder Liner | 7E-8656 | 223-6361 Engine 7E8656 Body As Piston Cylinder Liner 2236361 Ring Piston Ring 7E-8656 |
